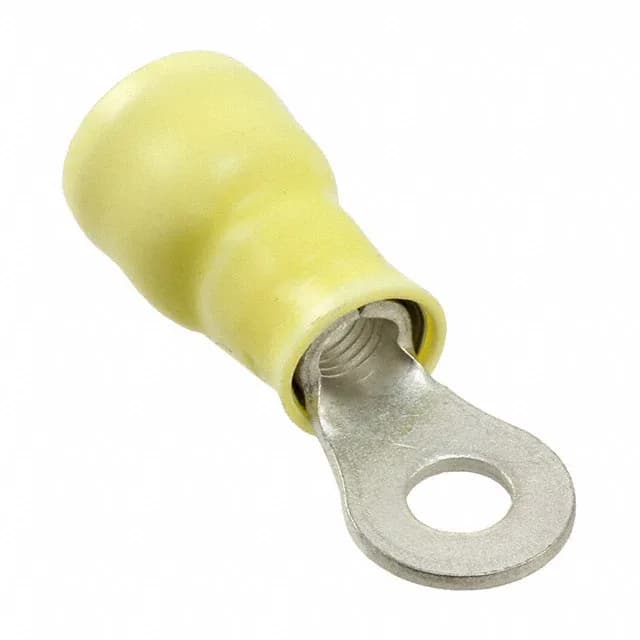

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-35605-2, circular, 10-12 AWG, #8 stud, tin-plated copper, PVC insulated, 0.040" thick, yellow, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.172\" (29.77mm) |
| Insulation diameter | 0.170\" ~ 0.300\" (4.32mm ~ 7.62mm) |
The 2-35605-2 is a PIDG-series circular ring terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire and fitting an #8 stud. The terminal is tin-plated copper with a PVC-insulated barrel, serrated termination, and measures 0.040" thick with an overall length of 1.172".
The insulation is yellow, which for PIDG series indicates the 10-12 AWG wire range.
