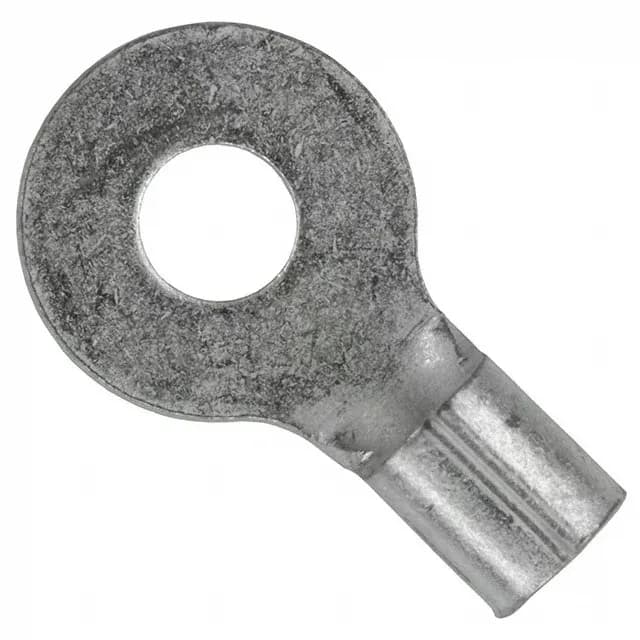

TE Connectivity AMP Connectors Solistrand ring terminal, order code 2-35771-1, 10-12 AWG, #10 stud size, circular terminal type, non-insulated, tin-plated copper contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Contact material | Copper |
| Width - outer edges | 0.500\" (12.70mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.865\" (21.97mm) |
The 2-35771-1 is a non-insulated circular ring terminal from the TE Connectivity Solistrand series, accepting 10-12 AWG wire and terminating to a #10 stud. The tin-plated copper contact is crimp-terminated for free-hanging installation; the brazed seam and serrated termination provide mechanical grip on the conductor.
The 2-35771-1 accepts 10-12 AWG wire and fits a #10 stud.
