TE Connectivity AMP Connectors 2-36149-2 — Ring Terminals

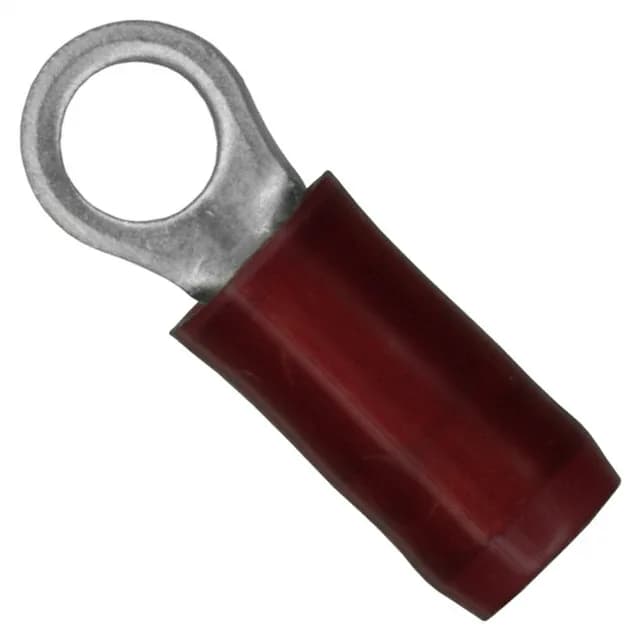

TE Connectivity 2-36149-2 PIDG Ring Terminal, 16-22 AWG

MPN2-36149-2
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36149-2, 16-22 AWG, #6 stud, circular, tin-plated copper, insulated, 0.031" (0.79mm) thickness, crimp termination, free hanging.

$0.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-36149-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-36149-2 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.218\" (5.54mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.672\" (17.07mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

PIDG ring terminal for 16-22 AWG wire

The 2-36149-2 is a PIDG-series insulated ring terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and fitting a #6 stud. The tin-plated copper contact is crimp-terminated and free-hanging; the red nylon insulation covers an insulation diameter range of 0.080" to 0.125" (2.03mm to 3.18mm).

Serrated termination and material thickness

The serrated termination feature improves grip on the conductor during crimp, while the 0.031" (0.79mm) contact thickness provides mechanical strength for the connection.

Frequently asked questions

What is the color of the 2-36149-2 ring terminal?

The insulation color is Red.

What compliance documentation does TE Connectivity provide for 2-36149-2?

The 2-36149-2 is RoHS Compliant.
