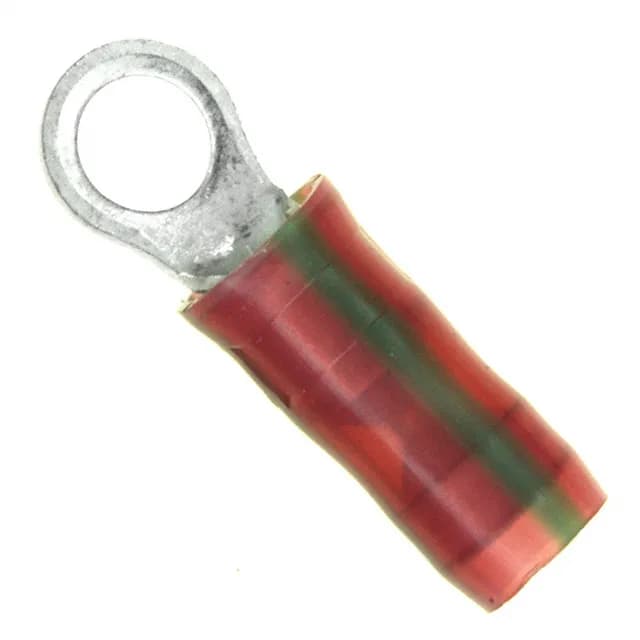

TE Connectivity AMP Connectors 2-36149-3 — Ring Terminals

2-36149-3 TE PIDG Ring Terminal, 22 AWG, #6 Stud

MPN2-36149-3
Active

TE Connectivity AMP PIDG ring terminal, order code 2-36149-3, circular, 22 AWG, #6 stud, insulated, tin-plated copper, 0.031" (0.79mm) thick, free hanging crimp termination, bulk package.

$0.7900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-36149-3 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
New & surplus from a trusted supplier networkAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-36149-3 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge22 AWG
ColorRed, Green Stripe
Contact materialCopper
Width - outer edges0.218\" (5.54mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesInsulation Restriction
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.734\" (18.64mm)
Insulation diameter0.038\" ~ 0.110\" (0.97mm ~ 2.79mm)

Product details

PIDG ring terminal for 22 AWG, #6 stud

The 2-36149-3 is a PIDG-series circular ring terminal from TE Connectivity AMP Connectors, accepting 22 AWG wire and terminating to a #6 stud. The terminal is insulated with a polyamide (nylon) sleeve, colour-coded red with a green stripe, and uses a crimp termination for free-hanging (in-line) mounting.

Insulation diameter and wire fit

The insulation restriction feature accepts wire insulation diameters from 0.038" to 0.110" (0.97 mm to 2.79 mm), matching the 22 AWG conductor range.

Frequently asked questions

What is the colour of the 2-36149-3 PIDG ring terminal?

The insulation sleeve is red with a green stripe.

What wire gauge does the 2-36149-3 accept?

It accepts 22 AWG wire.
