TE Connectivity AMP Connectors 2-36151-2 — Ring Terminals

2-36151-2 TE Connectivity PIDG Ring Terminal, 16-22 AWG

MPN2-36151-2
Active

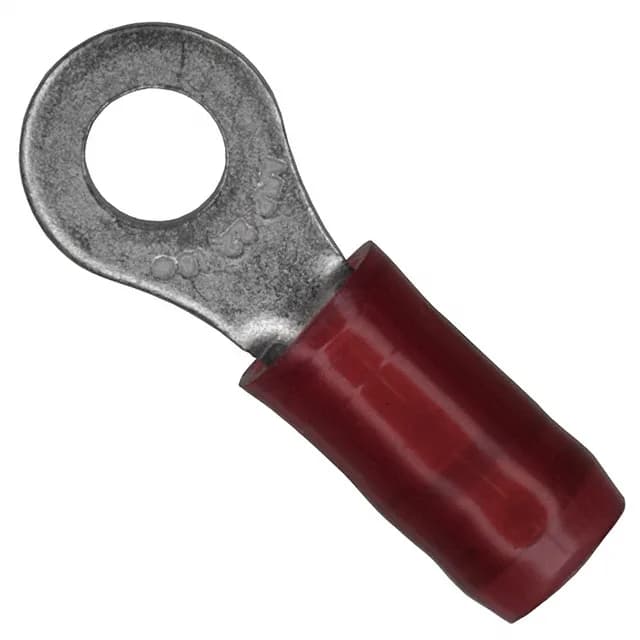

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36151-2, circular, 16-22 AWG, #6 stud, tin-plated copper, 0.031" (0.79mm) thickness, red insulated, crimp termination, free hanging.

$0.3300Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-36151-2 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.281\" (7.14mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall0.797\" (20.24mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

Red insulated ring terminal for 16-22 AWG

The 2-36151-2 is the #6 stud, 16-22 AWG member of TE Connectivity's PIDG ring terminal line, with a circular terminal type and tin-plated copper contact. Insulation diameter accommodates 0.080" ~ 0.125" (2.03mm ~ 3.18mm) wire; the serrated termination on the crimp barrel grips the conductor for mechanical retention.

Active production, tape and reel packaging

Supplied in Tape & Reel (TR) or Cut Tape (CT) package options for volume or prototype quantities.

Frequently asked questions

Who supplies 2-36151-2 and how is it quoted for volume purchases?

TE Connectivity AMP Connectors is the manufacturer. The 2-36151-2 is quoted per reel (Tape & Reel) or per cut-tape quantity against the BOM; availability is confirmed at RFQ.

What is 2-36151-2's listed color (Red) on this Ring Terminals line?

The 2-36151-2 is color-coded red, indicating the 16-22 AWG wire range per the PIDG series standard.

What compliance documentation does TE Connectivity AMP Connectors provide for 2-36151-2 (RoHS, REACH, UL, IEC)?

The 2-36151-2 is supplied by TE Connectivity AMP Connectors; the manufacturer typically provides RoHS and REACH compliance documentation. UL and IEC certifications are standard for the PIDG series but should be confirmed per the specific part number.
