TE Connectivity AMP Connectors 2-36153-2 — Ring Terminals

2-36153-2 TE PIDG Ring Terminal, 16-22 AWG, #10 Stud

MPN2-36153-2
Active

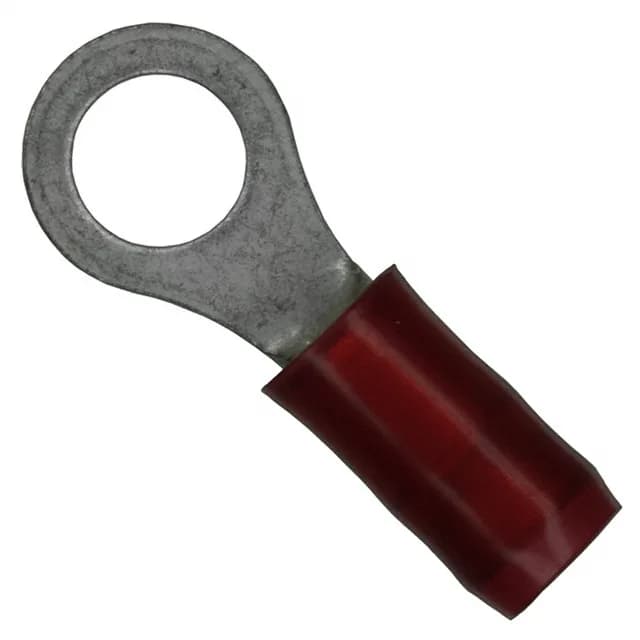

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36153-2, 16-22 AWG, #10 stud, circular, 0.031" (0.79mm) thick, tin-plated copper, insulated, free-hanging, crimp termination.

$0.3400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-36153-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-36153-2 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge16-22 AWG
ColorRed
Contact materialCopper
Width - outer edges0.312\" (7.92mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.844\" (21.44mm)
Insulation diameter0.080\" ~ 0.125\" (2.03mm ~ 3.18mm)

Product details

Crimp termination for 16-22 AWG

The 2-36153-2 is the #10 stud member of TE's PIDG ring terminal line, accepting 16-22 AWG wire with a tin-plated copper contact and a red nylon insulation sleeve. The serrated inner barrel grips the conductor during crimp termination, and the free-hanging design suits inline wire-to-stud connections.

Stud-size selection across the PIDG series

Within the PIDG 36153 family, the 2-36153-2 uses a #10 stud (0.312" outer width) while the 2-36151-2 and 2-36150-1 use a #6 stud with respective widths of 0.281" and 0.218" — the wire range, contact finish, and insulation material are shared across the series.

Frequently asked questions

Where can I buy 2-36153-2 and how do I get a price?

The 2-36153-2 is stocked by TE Connectivity AMP Connectors and available through authorized distribution. Pricing is confirmed at RFQ against your BOM quantity.

What is the closest functional peer to 2-36153-2?

The 2-36154-2 is the closest functional peer: same #10 stud size, same 0.312" outer width and 0.844" overall length, but with a larger insulation diameter range (0.105" to 0.140" vs 0.080" to 0.125"). The 2-36153-2 will not drop into a panel wired for 2-36154-2 without verifying the wire insulation diameter.
