PIDG ring terminal for 22 AWG, #10 stud

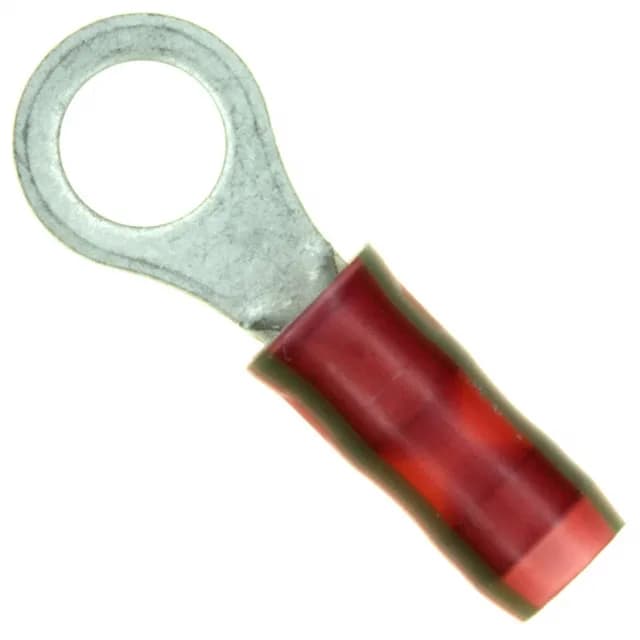

The 2-36153-3 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, accepting 22 AWG wire and terminating to a #10 stud. The tin-plated copper contact is 0.031" (0.79mm) thick, insulated with polyamide (nylon), and features insulation restriction. Overall length is 0.909" (23.10mm); outer edge width is 0.312" (7.92mm).
Crimp termination and wire range
Free-hanging (in-line) crimp termination accepts wire insulation diameters from 0.038" to 0.110" (0.97mm to 2.79mm). The insulation restriction feature positions the wire jacket within the barrel for strain relief.
