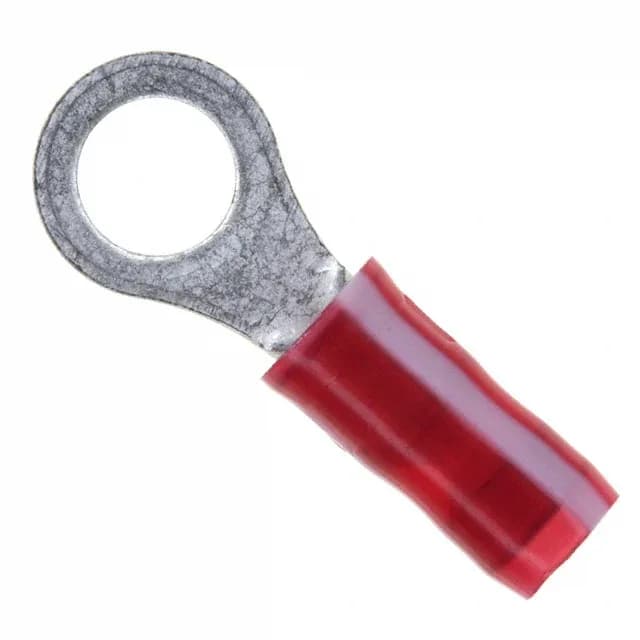

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36153-9, 18 AWG, #10 stud, 0.031" (0.79mm) thickness, tin-plated copper contact, insulated, free hanging (in-line) crimp termination.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 18 AWG |
| Color | Red, White Stripe |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Insulation Restriction |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.909\" (23.10mm) |
| Insulation diameter | 0.056\" ~ 0.110\" (1.42mm ~ 2.79mm) |
The 2-36153-9 is the 18 AWG, #10 stud member of TE Connectivity's PIDG ring terminal line. It uses a tin-plated copper contact, 0.031" (0.79mm) thick, with an insulated polyamide (nylon) barrel and an insulation restriction feature.
Pricing and availability are confirmed at RFQ against the BOM quantity.
The 2-36153-9 is ROHS3 compliant.
