TE Connectivity AMP PIDG ring terminal, order code 2-36154-2, red, insulated, 16-22 AWG, #10 stud size, 0.031" (0.79mm) thickness, tin-plated copper contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 0.844\" (21.44mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |

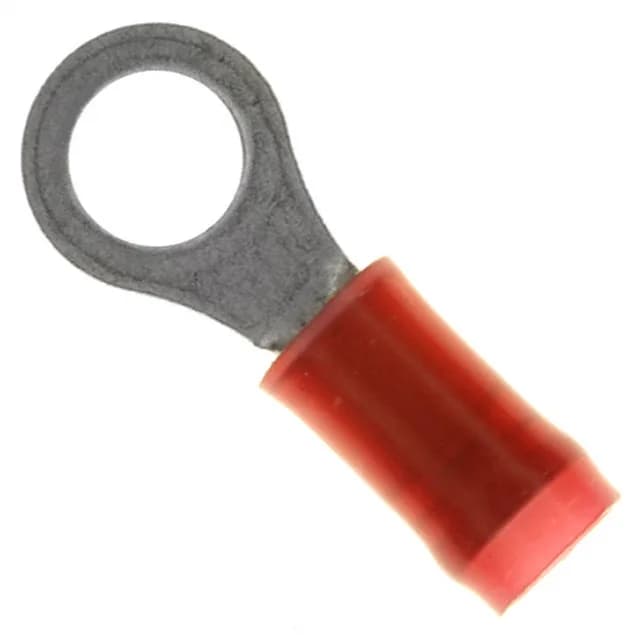

The 2-36154-2 is a red insulated PIDG ring terminal from TE Connectivity AMP Connectors, sized for a #10 stud and accepting 16-22 AWG wire. The tin-plated copper ring is 0.031" (0.79mm) thick with a serrated crimp barrel that grips the conductor; the nylon insulation sleeve covers the barrel and a portion of the wire jacket.
Overall length is 0.844" (21.44mm); outer edge width is 0.312" (7.92mm).
The insulation grip accepts wire insulation diameters from 0.105" to 0.140" (2.67mm to 3.56mm).
