TE Connectivity AMP Connectors 2-36160-1 — Ring Terminals

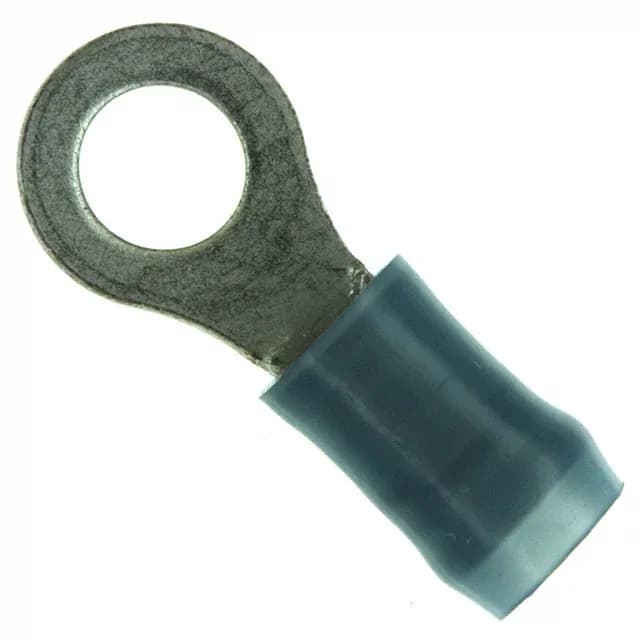

2-36160-1 TE Connectivity PIDG Ring Terminal, 14-16 AWG

MPN2-36160-1
Active

TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36160-1, 14-16 AWG, #10 stud size, circular terminal type, tin-plated copper contact, insulated blue nylon, serrated crimp termination, free hanging in-line mounting.

$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-36160-1 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge14-16 AWG
ColorBlue
Contact materialCopper
Width - outer edges0.343\" (8.71mm)
Material - insulationPolyamide (PA), Nylon
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesSerrated Termination
Thickness0.031\" (0.79mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)10 Stud
Contact finishTin
Length - overall0.859\" (21.82mm)
Insulation diameter0.115\" ~ 0.170\" (2.92mm ~ 4.32mm)

Product details

PIDG ring terminal for 14-16 AWG, #10 stud

The 2-36160-1 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, designed for 14-16 AWG wire and a #10 stud size. The terminal is insulated with blue nylon, uses a tin-plated copper contact, and features a serrated crimp for secure wire retention.

Dimensions and wire range

Overall length is 0.859" (21.82 mm) with an outer edge width of 0.343" (8.71 mm). The insulation diameter accepts 0.115" to 0.170" (2.92 mm to 4.32 mm) wire insulation. Contact thickness is 0.031" (0.79 mm). The 14-16 AWG wire range and #10 stud size match common power and signal circuit terminations in panel and harness builds.
