TE Connectivity AMP Connectors PIDG ring terminal, order code 2-36161-6, 10 AWG, #6 stud size, 0.039" (0.99mm) thickness, tin-plated copper, insulated, yellow/brown stripe, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10 AWG |
| Color | Yellow, Brown Stripe |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Insulation Restriction, Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 1.148\" (29.16mm) |
| Insulation diameter | 0.119\" ~ 0.200\" (3.02mm ~ 5.08mm) |

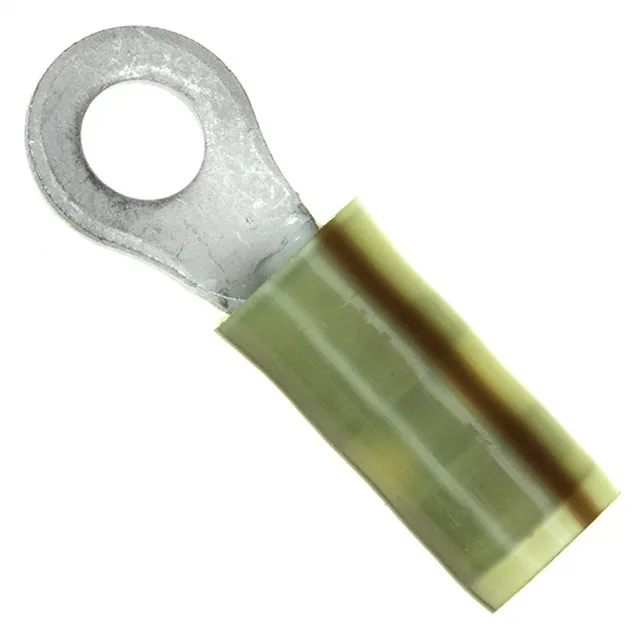

The 2-36161-6 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, accepting 10 AWG wire and fitting a #6 stud. The terminal is tin-plated copper with a nylon-insulated barrel, crimp-terminated, and ships in bulk.
The insulation is yellow with a brown stripe.
It accepts 10 AWG wire.
