TE Connectivity AMP Connectors 2-406541-1 — Modular Jacks (RJ)

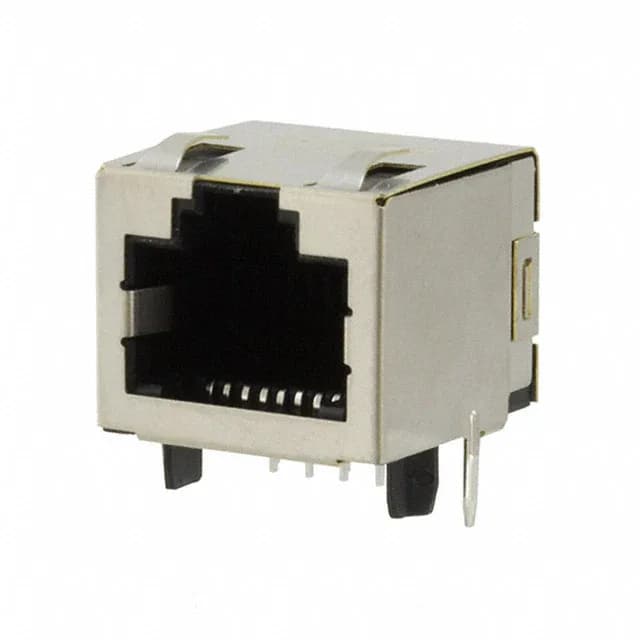

TE 2-406541-1 Modular Jack, 8P8C RJ45, Cat5, Shielded, R/A

MPN2-406541-1
Active

TE Connectivity modular jack, 8P8C (RJ45, Ethernet), Cat5 rated, shielded with EMI finger, right-angle through-hole, gold 50.0µin contact finish, tray package.

$2.2600Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-406541-1 datasheet (PDF)
RoHSROHS3 Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-406541-1 specifications
ParameterValue
MountingThrough Hole
Connector typeJack
Operating temperature-40°C ~ 85°C
LED colorDoes Not Contain LED
Contact materialPhosphor Bronze
Housing materialThermoplastic
PackageTray
RatingsCat5
FeaturesBoard Guide
ShieldingShielded, EMI Finger
Orientation90° Angle (Right)
TerminationSolder
Tab directionUp
Contact finishGold
Rows1
Number of ports1
Contact finish thickness50.0µin (1.27µm)
Number of positions (Contacts)8p8c (RJ45, Ethernet)

Product details

Shielded RJ45 Jack for Cat5 Signal Paths

The Cat5 rating means this jack is specified for 100 MHz signaling — the standard for 100BASE-TX Fast Ethernet and similar 100 Mbps data links. It is shielded with an integrated EMI finger, which grounds the cable shield to the PCB ground plane through the through-hole solder tails, keeping common-mode noise off the signal pairs. The tab faces up, matching the standard RJ45 plug orientation.

Board Layout and Mounting

The single-port, single-row design occupies a compact footprint on the PCB edge.

Frequently asked questions

Where can I buy 2-406541-1?

Submit a quote request for current pricing and availability — stock and lead time are confirmed at quote time.

Is 2-406541-1 shielded?

Yes, the 2-406541-1 is shielded with an integrated EMI finger. The shield connects to the PCB ground plane through the through-hole solder tails, providing a low-impedance path for cable-shield termination.

What is the data rate rating of 2-406541-1?

The 2-406541-1 is rated Cat5, which specifies performance up to 100 MHz — suitable for 100BASE-TX Fast Ethernet and other 100 Mbps applications.
