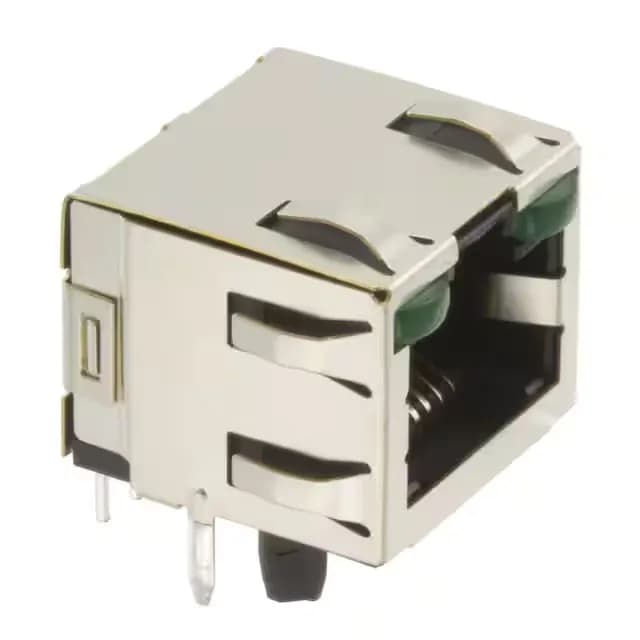

It's the kind of jack you see on industrial Ethernet switches, panel-mount PLC interfaces, or any equipment that needs a rugged, shielded RJ45 port with link-status LEDs staring back at you from the front panel. The housing carries a board guide to help align the mating plug during blind mating in an enclosure, and the EMI finger shield bleeds chassis ground to the panel before the signal pins make contact.
Rated Cat5. The dual green LEDs (green-green) provide two independent status indicators.
Through-hole solder termination, right-angle orientation with tab up. The single-row, single-port layout keeps the footprint compact on the PCB edge. The board guide and EMI finger are integral to the housing — no separate shield can to fit. Packaged in a tray, which is the standard delivery for automated pick-and-place of through-hole parts that get wave-soldered.
