TE Connectivity jack, order code 2-406549-9, 8p8c (RJ45, Ethernet), Cat5 rated, shielded with EMI finger, gold-plated contacts, through-hole right-angle, solder termination, tray package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Connector type | Jack |
| Operating temperature | -40°C~85°C |
| LED color | Orange, Green - Yellow |
| Contact material | Phosphor Bronze |
| Housing material | Thermoplastic |
| Package | Tray |
| Ratings | Cat5 |
| Features | Board Guide |
| Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Tab direction | Up |
| Contact finish | Gold |
| Rows | 1 |
| Number of ports | 1 |
| Contact finish thickness | 50.0µin (1.27µm) |
| Number of positions (Contacts) | 8p8c (RJ45, Ethernet) |
The 2-406549-9 is an 8p8c (RJ45, Ethernet) jack from TE Connectivity, Cat5 rated, with a shielded shell and EMI finger for noise containment in industrial Ethernet runs.
The Cat5 rating limits the jack to 100 MHz signal bandwidth — adequate for 100BASE-TX and 1000BASE-T in existing structured cabling, but not for Cat6a or higher frequencies.

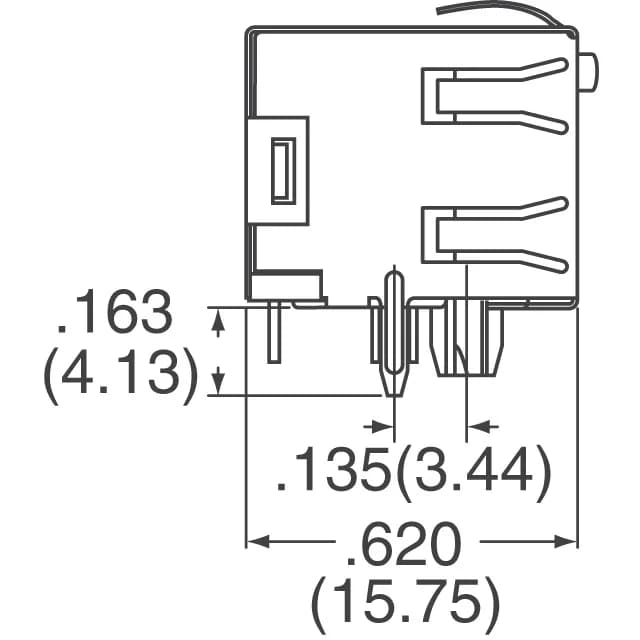

Evaluate the base product number 406549 family for similar RJ45 jacks; confirm the pinout and shield dimensions against the existing board layout.
