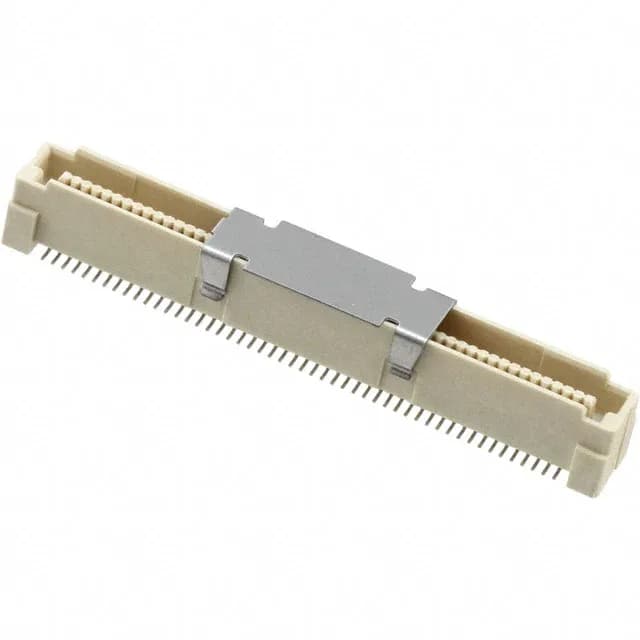

100-Position Mezzanine Plug at 0.80mm Pitch
Mated stacking heights span 7mm, 11mm, 15mm, and 19mm, giving the layout engineer a range of board-spacing options from a single connector family.
Stack Height Selection and Board Spacing
The 2-5177986-4 supports four mated stacking heights: 7mm, 11mm, 15mm, and 19mm. When pairing with the matching Free Height receptacle, the combined height matches one of the four values listed. Pick the height that fits the z-budget between boards; the 0.80mm pitch keeps the footprint consistent across all stack options.
Active Lifecycle and Sourcing
The base product number is 5177986; the 2-5177986-4 is the specific order code for the 100-position, 0.80mm pitch variant in Tape & Reel packaging.
