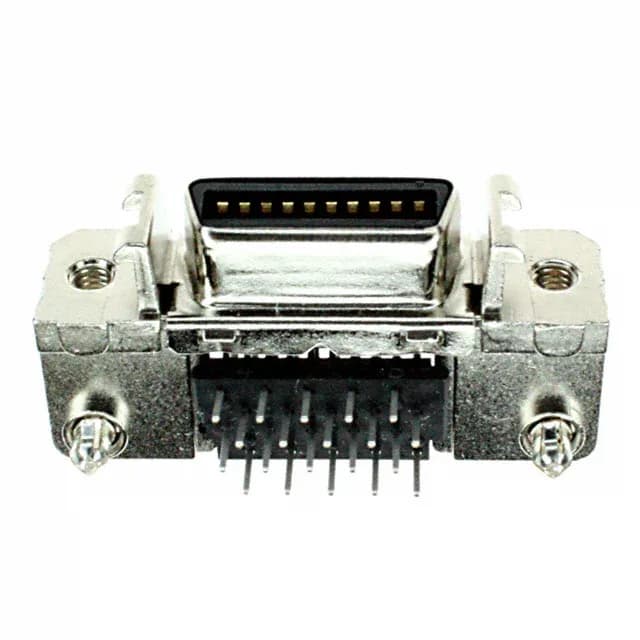

TE Connectivity CHAMP.050 II receptacle, 20 positions, 2 rows, right-angle solder, panel mount, 30.0µin gold, board lock.
| Parameter | Value |
|---|---|
| Series | CHAMP .050 II |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Outer Shroud Contacts |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (M2.6) |
| Rows | 2 |
| Positions | 20 |
| Contact finish thickness | 30.0µin (0.76µm) |
It uses an outer shroud contact arrangement in a dual-row layout, typical for high-density I/O interconnects in telecom, data networking, and industrial equipment where a reliable, shielded connection is needed.
This receptacle mates with a CHAMP.050 II plug (the matching male connector with outer shroud contacts). The housing/shell flange uses M2.6 screws for panel-mount retention, giving a rigid mechanical lock that prevents the mated pair from backing out under vibration.
The mating half is a CHAMP.050 II plug with outer shroud contacts. The receptacle uses M2.6 screws in the housing flange for panel-mount retention, so the plug should have matching screw-lock hardware.
Yes, it is RoHS Compliant per the manufacturer's listing.
