TE Connectivity CHAMP.050 II receptacle, 26 positions, 2 rows, right-angle solder termination, panel mount with M2.6 flange, 30.0µin gold contacts, board lock, tray.
| Parameter | Value |
|---|---|
| Series | CHAMP .050 II |
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Outer Shroud Contacts |
| Package | Tray |
| Features | Board Lock |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (M2.6) |
| Rows | 2 |
| Positions | 26 |
| Contact finish thickness | 30.0µin (0.76µm) |

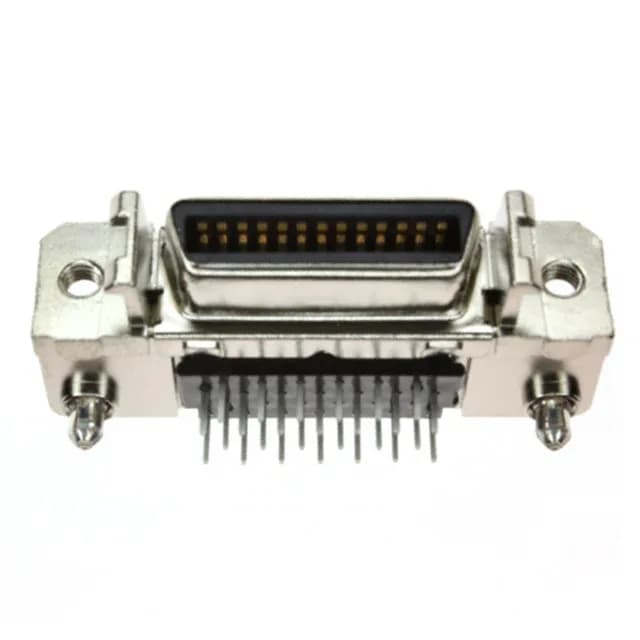

The 2-5178238-4: This receptacle mounts through the panel using the M2.6 flange feature, then solders into the PCB through-hole pads in a right-angle orientation.
The outer shroud contacts mean the mating interface is shielded by the shell — the signal pins are recessed, so the shell takes any initial alignment abuse before the contacts engage. That matters when you're blind-mating a panel connector.
This receptacle mates with the corresponding CHAMP.050 II plug or header that shares the same 0.050-inch pitch and outer shroud contact arrangement. The M2.6 flange on the receptacle matches the panel cutout for the mating half.
