TE Connectivity AMP Connectors 2-520128-2 — Quick-Disconnect Terminals

2-520128-2 TE Ultra-Fast QC Receptacle, 0.250" Tab

MPN2-520128-2
Active

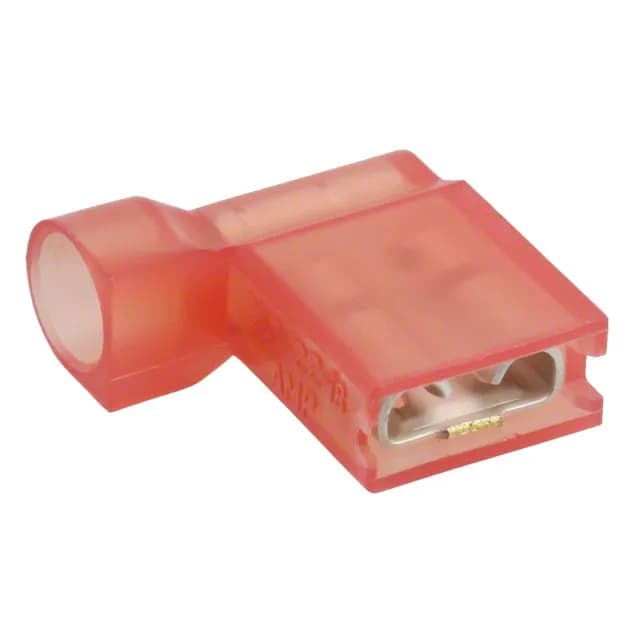

TE Connectivity AMP Connectors Ultra-Fast quick-disconnect receptacle, order code 2-520128-2, female, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 18-22 AWG, tin-plated brass contact, fully insulated, right-angle flag, crimp termination, free hanging, red.

$0.4500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUltra-Fast
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-520128-2 specifications
ParameterValue
SeriesUltra-Fast
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge18-22 AWG
ColorRed
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationFully Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.165\" (4.19mm)

Product details

Fully insulated flag receptacle for 0.250" tabs

The 2-520128-2 is the red, 18-22 AWG member of TE's Ultra-Fast quick-disconnect receptacle line, accepting 0.250" (6.35mm) wide tabs at a 0.032" (0.81mm) thickness. The fully insulated housing and right-angle flag orientation suit inline wire-to-wire connections where the wire exits perpendicular to the tab axis. Tin-plated brass contact, crimp termination, free hanging mount.

Tab width and thickness match across series

The 0.250" tab width and 0.032" tab thickness of the 2-520128-2 match the Utilux non-insulated receptacle 1-1627194-4 (same width and thickness, 15-18 AWG) and the Utilux 1-1659250-0 (0.248" width, 0.031" thickness, 17-20 AWG). The Ultra-Fast insulation and flag orientation are the primary differentiators; the tab interface is shared across these active-production receptacles.

Frequently asked questions

Where can I buy 2-520128-2 and how do I get a price?

The 2-520128-2 is available in Tape & Reel or Cut Tape packaging. Request a quote for current pricing and lead time.

What compliance documentation does TE provide for 2-520128-2?

The 2-520128-2 is RoHS3 Compliant per TE's documentation.

What is the color and gender of 2-520128-2?

The 2-520128-2 is a red, female (receptacle) quick-disconnect terminal.

Will 2-520128-2 drop into a panel specified around 1-1659250-0 without rewiring?

The 2-520128-2 accepts 18-22 AWG wire and a 0.165" insulation diameter, while the 1-1659250-0 accepts 17-20 AWG with a 0.102" insulation diameter. The tab width and thickness are close but not identical (0.250" vs 0.248", 0.032" vs 0.031"). The 2-520128-2 is fully insulated with a flag orientation; the 1-1659250-0 is non-insulated inline. A direct drop-in without rewiring is not guaranteed.
