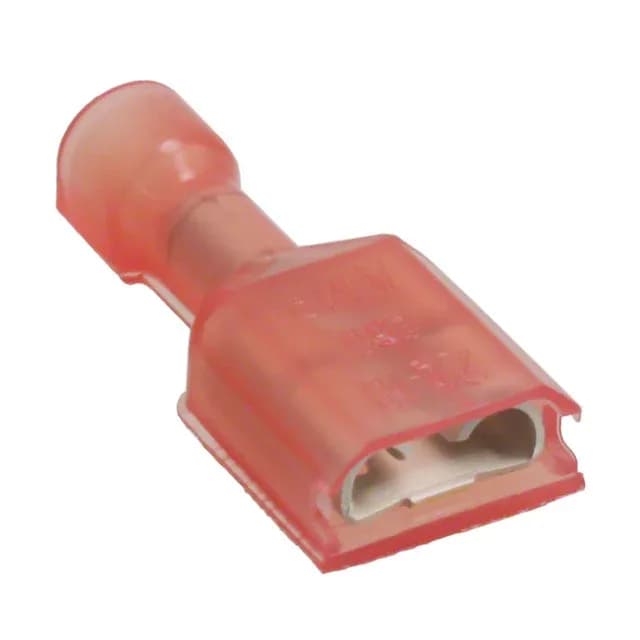

TE Connectivity Ultra-Fast quick disconnect receptacle, order code 2-520183-2, female, 18-22 AWG, 0.250" (6.35mm) tab width, fully insulated red housing, tin-plated brass contact, crimp termination.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast |
| Mounting type | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.855\" (21.72mm) |
| Insulation diameter | 0.135\" (3.43mm) |
The 2-520183-2 is the 18-22 AWG female member of TE's Ultra-Fast fully insulated quick disconnect line. It accepts 0.250" (6.35mm) tab width, terminates via crimp, and uses a tin-plated brass contact.
Within the Ultra-Fast series the 2-520183-2 is a female receptacle for 18-22 AWG wire; the 3-520107-2 is a male tab for 14-16 AWG wire — the 0.250" tab width and 0.032" tab thickness are shared, so the crimp die set must match the wire gauge, not the gender.
