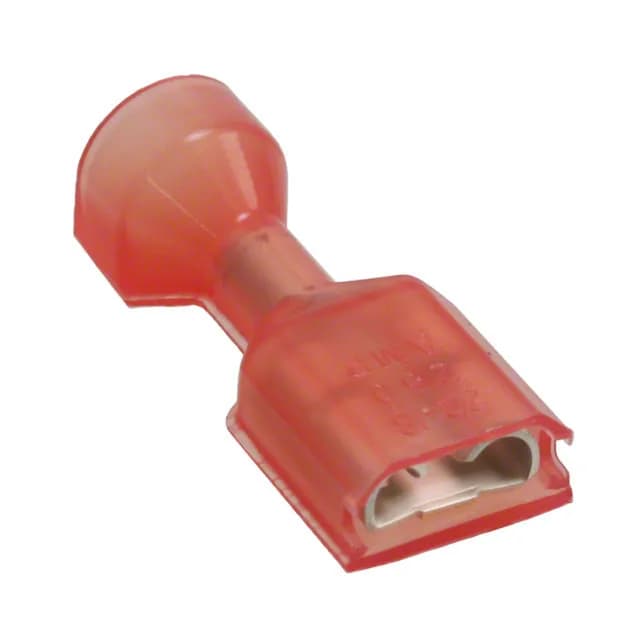

TE Connectivity AMP Connectors Ultra-Fast quick disconnect receptacle, order code 2-520263-2, female, 0.250" (6.35mm) tab width, 18-22 AWG, fully insulated, tin-plated brass contact, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.935\" (23.75mm) |
| Insulation diameter | 0.230\" (5.84mm) |
The 2-520263-2 is the red, fully-insulated female member of TE's Ultra-Fast quick disconnect line, accepting 0.250" (6.35mm) male tabs on 18-22 AWG wire. The tin-plated brass contact is crimped onto the wire, and the free-hanging housing provides full insulation coverage over the connection.
The insulation color is Red.
The gender is Female.
The part is rated ROHS3 Compliant.
