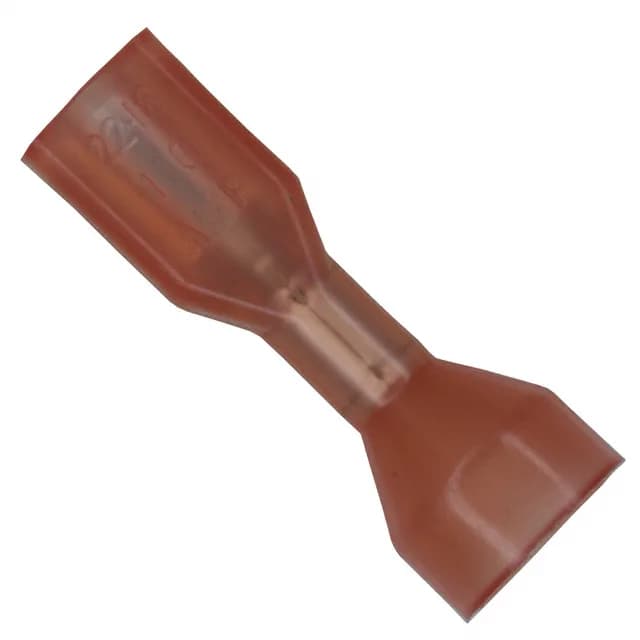

TE Connectivity AMP Ultra-Fast quick disconnect receptacle, order code 2-520310-2, female, 18-22 AWG, 0.110" (2.79mm) tab width, tin-plated brass contact, fully insulated, free hanging, crimp termination.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.110\" (2.79mm), 0.125\" (3.18mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.865\" (21.97mm) |
| Insulation diameter | 0.230\" (5.84mm) |
The 2-520310-2 is a fully insulated female quick disconnect receptacle in TE's Ultra-Fast series, accepting 18-22 AWG wire with a tab width of 0.110" (2.79mm) and tab thickness of 0.032" (0.81mm). The tin-plated brass contact is crimp-terminated for free-hanging inline use; overall length is 0.865" (21.97mm) and the insulation diameter accommodates up to 0.230" (5.84mm).
The 2-520310-2 accepts 18-22 AWG wire.
The 2-520310-2 mates with 0.110" (2.79mm) and 0.125" (3.18mm) tab widths.
The 2-520310-2 is red.
