TE Connectivity AMP Connectors 2-520405-2 — Quick-Disconnect Terminals

2-520405-2 Ultra-Fast Plus QC Receptacle 18-22 AWG 0.250"

MPN2-520405-2
Active

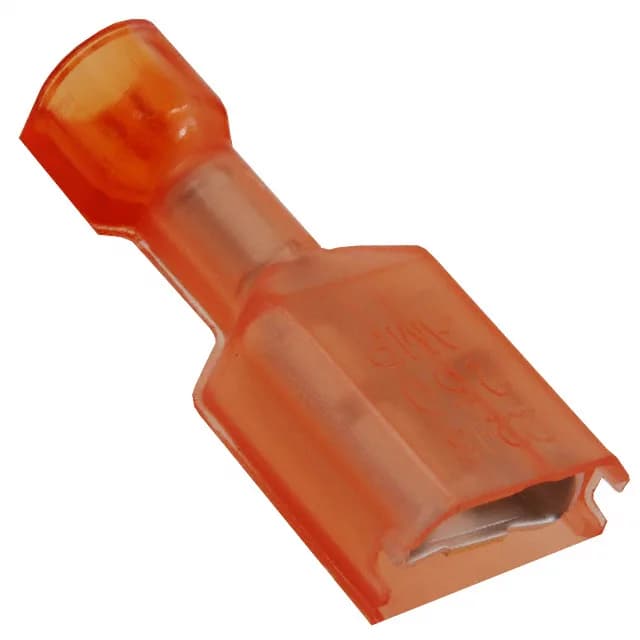

TE Connectivity Ultra-Fast Plus quick-connect receptacle, order code 2-520405-2, female, 18-22 AWG, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, tin-plated brass contact, fully insulated, free hanging (in-line), crimp termination, red.

$0.3700Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-520405-2 datasheet (PDF)
RoHSROHS3 Compliant
SeriesUltra-Fast Plus
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-520405-2 specifications
ParameterValue
SeriesUltra-Fast Plus
MountingFree Hanging (In-Line)
Terminal typeStandard
Wire gauge18-22 AWG
ColorRed
Tab width0.250\" (6.35mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationFully Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Length - overall0.855\" (21.72mm)
Insulation diameter0.060\" ~ 0.135\" (1.52mm ~ 3.43mm)

Product details

Quick-connect receptacle for 18-22 AWG

The 2-520405-2 is the 18-22 AWG member of TE's Ultra-Fast Plus fully insulated quick-connect receptacle line, terminated by crimp and installed free-hanging. It accepts a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, with a tin-plated brass contact and an insulation diameter range of 0.060" to 0.135" (1.52mm to 3.43mm).

Tab width and wire gauge contrast with Utilux peers

The 2-520405-2 uses a 0.250" tab width and accepts 18-22 AWG, while the Utilux 1-1659250-0 uses a 0.248" (6.30mm) tab width and accepts 17-20 AWG, and the Utilux 1-1627194-4 uses a 0.250" tab width and accepts 15-18 AWG — the wire gauge range and tab width differ, so match the wire size to the terminal's rated range.
