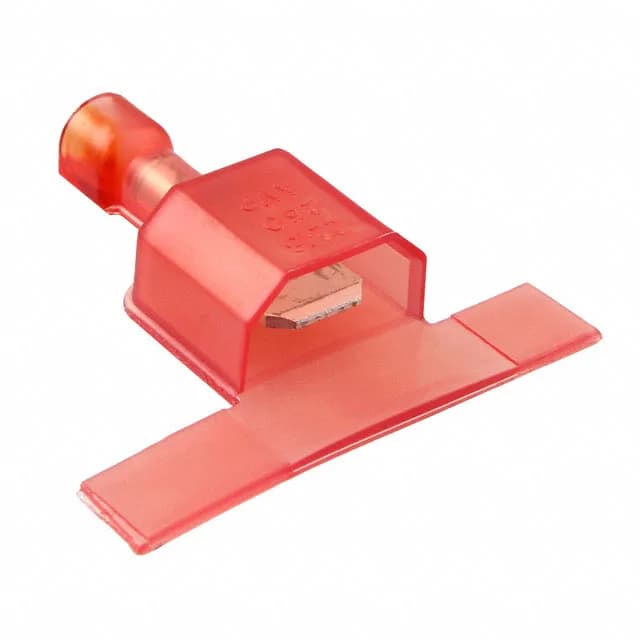

TE Connectivity Ultra-Fast Plus quick-connect tab, order code 2-521055-2, male, 0.250" (6.35mm) tab width, 0.032" (0.81mm) tab thickness, 18-22 AWG, tin-plated brass, fully insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast Plus |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.250\" (6.35mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.855\" (21.72mm) |
| Insulation diameter | 0.060\" ~ 0.135\" (1.52mm ~ 3.43mm) |
The 2-521055-2 is a male quick-connect tab from the TE Ultra-Fast Plus series, terminated by crimp and fully insulated for free-hanging inline use. It accepts 18-22 AWG wire with an insulation diameter of 0.060" to 0.135" (1.52mm to 3.43mm) and the tin-plated brass contact carries the 0.250" (6.35mm) tab width.
The 2-521055-2 is listed as Red.
The 2-521055-2 is RoHS3 compliant per the manufacturer's listing.
