TE Connectivity AMP Connectors 2-521164-2 — Quick-Disconnect Terminals

2-521164-2 Ultra-Fast QC Receptacle 18-22 AWG Red

MPN2-521164-2
Active

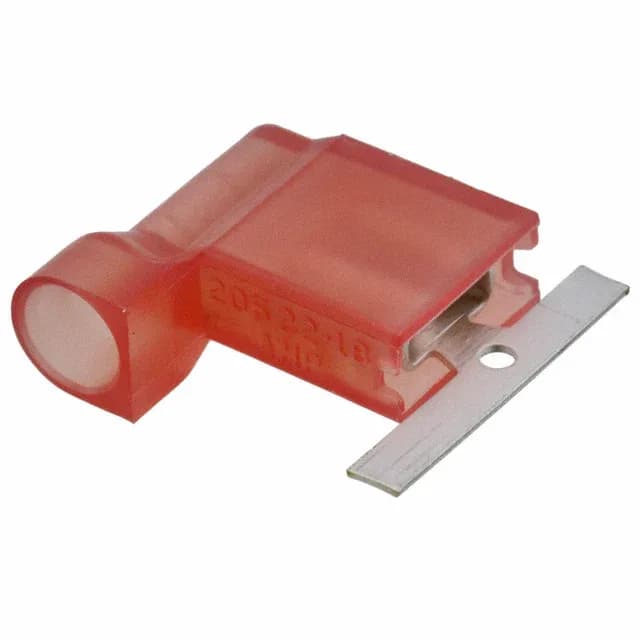

TE Connectivity Ultra-Fast quick disconnect receptacle, order code 2-521164-2, female, 18-22 AWG, 0.187" (4.75mm) tab width, tin-plated brass contact, fully insulated red housing, crimp termination, free hanging right-angle flag mount.

$0.4600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesUltra-Fast
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2-521164-2 specifications
ParameterValue
SeriesUltra-Fast
MountingFree Hanging (In-Line), Right Angle
Terminal typeAngled - 90°, Flag
Wire gauge18-22 AWG
ColorRed
Tab width0.187\" (4.75mm), 0.205\" (5.21mm)
Contact materialBrass
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
InsulationFully Insulated
TerminationCrimp
Tab thickness0.032\" (0.81mm)
Contact finishTin
Insulation diameter0.165\" (4.19mm)

Product details

18-22 AWG flag receptacle

The 2-521164-2 is the red, fully insulated 18-22 AWG member of TE's Ultra-Fast quick disconnect line, a female flag receptacle for 0.187" (4.75mm) and 0.205" (5.21mm) tab widths. Tin-plated brass contact, crimp termination, free-hanging right-angle mount with a 0.032" (0.81mm) tab thickness.

Flag orientation and insulation diameter

The 90° flag orientation suits wire routing against a panel or bracket where a straight receptacle would not fit. The insulation diameter accepts up to 0.165" (4.19mm) of insulation over the 18-22 AWG conductor.

Frequently asked questions

What is the color and gender of 2-521164-2?

The housing is red, and the terminal is a female receptacle.
