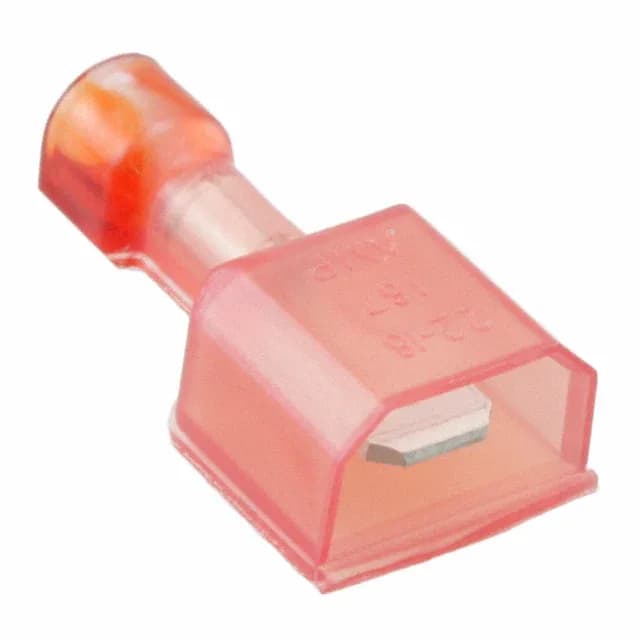

TE Connectivity AMP Connectors Ultra-Fast Plus quick-disconnect tab, order code 2-521361-2, male, 0.187" (4.75mm) tab width, 18-22 AWG, tin-plated brass, fully insulated, free-hanging crimp termination.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast Plus |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.187\" (4.75mm) |
| Contact material | Brass |
| Gender | Male |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.032\" (0.81mm) |
| Contact finish | Tin |
| Length - overall | 0.793\" (20.14mm) |
| Insulation diameter | 0.060\" ~ 0.135\" (1.52mm ~ 3.43mm) |
The 2-521361-2 is a male quick-disconnect tab in TE's Ultra-Fast Plus series, accepting 18-22 AWG wire with a 0.187" (4.75mm) tab width. The fully insulated red housing covers a tin-plated brass contact; termination is crimp-style for free-hanging (in-line) installation.
The 2-521361-2 is ROHS3 Compliant per the manufacturer's listing.
