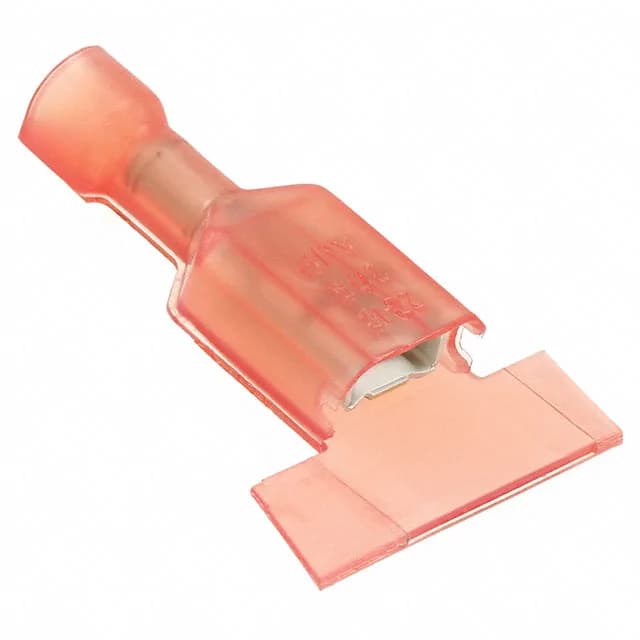

TE Connectivity AMP Ultra-Fast quick-disconnect terminal, order code 2-521406-2, female, 18-22 AWG, 0.205" (5.21mm) tab width, tin-plated brass contact, fully insulated, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Ultra-Fast |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 18-22 AWG |
| Color | Red |
| Tab width | 0.205\" (5.21mm) |
| Contact material | Brass |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Fully Insulated |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.855\" (21.72mm) |
| Insulation diameter | 0.135\" (3.43mm) |
The 2-521406-2 is the female member of TE's Ultra-Fast quick-disconnect terminal line, accepting 18-22 AWG wire with a 0.205" (5.21mm) tab width. Tin-plated brass contact, fully insulated housing in red, crimp termination for free-hanging inline mounting.
