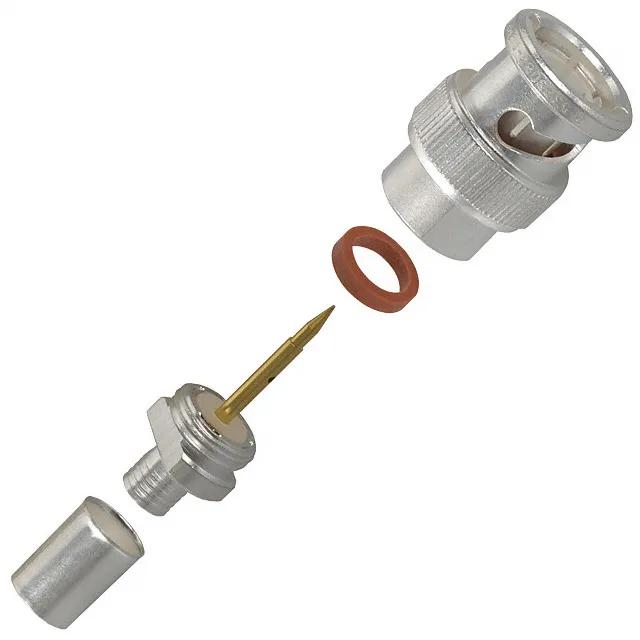

2-5329083-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 2-5329083-1 BNC Plug, 50 Ohm, 2.5 GHz

MPN2-5329083-1
Obsolete

TE Connectivity BNC plug, male pin, 50 Ohm, 2.5 GHz, bayonet lock, crimp shield termination, push-on contact, RG-59/62 cable group, silver body, gold center contact, 500 mating cycles, -55°C to 85°C.

$8.4100Ref. price · indicative, final on quote
2-5329083-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2-5329083-1 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2.5 GHz
Cable groupRG-59, 59A, 59B, 62, 62A, 62B, 124, 140, 210
Operating temperature-55°C ~ 85°C
Body materialBrass
Housing colorSilver
Dielectric materialPolypropylene (PP)
Center contact materialBrass
PackageBulk
Includes4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Gasket
Impedance50 Ohms
Body finishSilver
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationPush On
Center contact platingGold

Product details

The 2-5329083-1: It comes as a complete assembly kit: one connector body, one contact, one ferrule, and one gasket. The 500-cycle mating rating means it handles repeated connect-disconnect in field-service or lab use without the center contact wearing out.

This plug accepts RG-59, 59A, 59B, 62, 62A, 62B, 124, 140, and 210 cables. The shield is crimped, and the center contact uses a push-on termination.

The 2-5329083-1 is listed as Obsolete. If the design can tolerate a parametric alternative, a current-production BNC plug from the same cable group and impedance class would be the practical path forward, but no direct cross-reference is documented here.

Environmental and Mechanical Ratings

Frequently asked questions

Does the 2-5329083-1 work with RG-59 cable?

Yes, the 2-5329083-1 is specified for RG-59, 59A, and 59B cables, along with RG-62, 124, 140, and 210 types.

What is the replacement for 2-5329083-1?

For a current-production alternative, look for a TE BNC plug with the same cable group (RG-59/62), 50-Ohm impedance, and bayonet lock — but confirm the mechanical fit and RF performance against your application.
