Pin diameter range and contact design

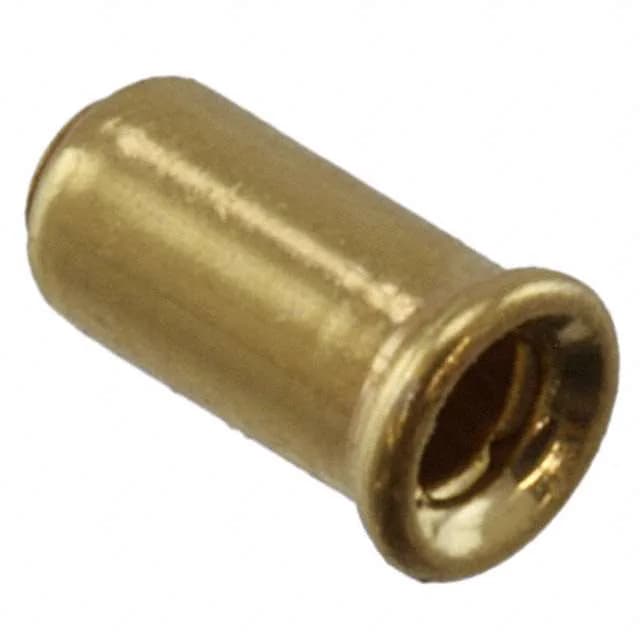

The 2-5332070-3 accepts pin diameters from 0.037" to 0.040" (0.94mm to 1.02mm) — this range covers standard 0.040" round pins used in many TE and industry headers. Closed-bottom construction prevents solder wicking up the contact barrel during wave or hand soldering, preserving the full socket depth of 0.130" (3.30mm) for pin insertion.
Mounting and thermal rating
Solder termination with no tail — the socket body sits flush on the board; the mounting hole diameter is 0.072" (1.83mm), which matches standard PCB drill sizes for press-fit or soldered retention. Rated for -65°C to 126°C operating range, the socket handles thermal cycling from cold-soak to under-hood temperatures without contact relaxation.
Supplied in bulk packaging; the base product number 5332070 covers the family, and this variant specifies the gold thickness and closed-bottom option.
