TE Connectivity AMP Connectors 2-5332095-4 — PCB Pin Sockets

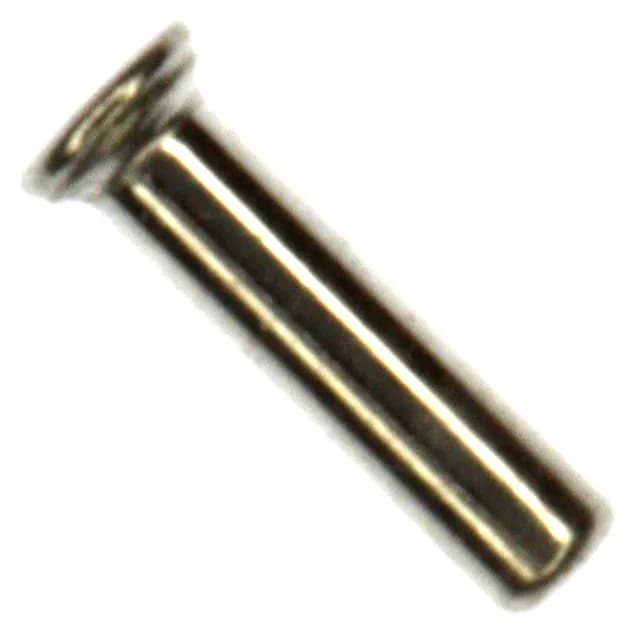

2-5332095-4 TE Connectivity PCB Pin Socket, Gold

MPN2-5332095-4
Active

TE Connectivity AMP Connectors Series 1 PCB Pin Socket, 2-5332095-4, accepts pin diameter 0.013"~0.020", gold-plated beryllium copper contact, closed bottom, solder termination, Bulk package, -65°C~126°C operating range

$0.8100Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-5332095-4 datasheet (PDF)
RoHSRoHS Compliant
Series1
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-5332095-4 specifications
ParameterValue
Series1
Tail typeNo Tail
Mounting hole diameter0.041\" (1.04mm)
Operating temperature-65°C ~ 126°C
Socket depth0.165\" (4.19mm)
Contact materialBeryllium Copper
PackageBulk
FeaturesClosed Bottom
TerminationSolder
Contact finishGold
Flange diameter0.059\" (1.50mm)
Length - overall0.178\" (4.52mm)
Accepts pin diameter0.013\" ~ 0.020\" (0.33mm ~ 0.51mm)
Contact finish thickness30.0µin (0.76µm)

Product details

Pin diameter range 0.013"~0.020" — closed bottom prevents solder wicking

2-5332095-4 is a PCB pin socket from TE Connectivity AMP Connectors Series 1, designed to accept pin diameters from 0.013" to 0.020" (0.33mm to 0.51mm). The closed bottom feature blocks solder from entering the contact area during wave soldering, keeping the pin bore clean for reliable insertion.

Solder termination, no tail — overall length 0.178"

Termination is solder with no tail — the socket depth is 0.165" (4.19mm) and overall length is 0.178" (4.52mm). The mounting hole diameter is 0.041" (1.04mm), and the flange diameter is 0.059" (1.50mm). Bulk packaging.

Frequently asked questions

What pin diameter does 2-5332095-4 accept?

It accepts pin diameters from 0.013" to 0.020" (0.33mm to 0.51mm).

Is 2-5332095-4 a closed bottom pin receptacle?

Yes, it features a closed bottom to prevent solder wicking into the contact area during wave soldering.

What is the overall length of 2-5332095-4?

The overall length is 0.178" (4.52mm).

Is 2-5332095-4 RoHS compliant?

Yes, it is RoHS compliant.
