TE Connectivity AMP Connectors 2-552001-1 — Centronics Connectors

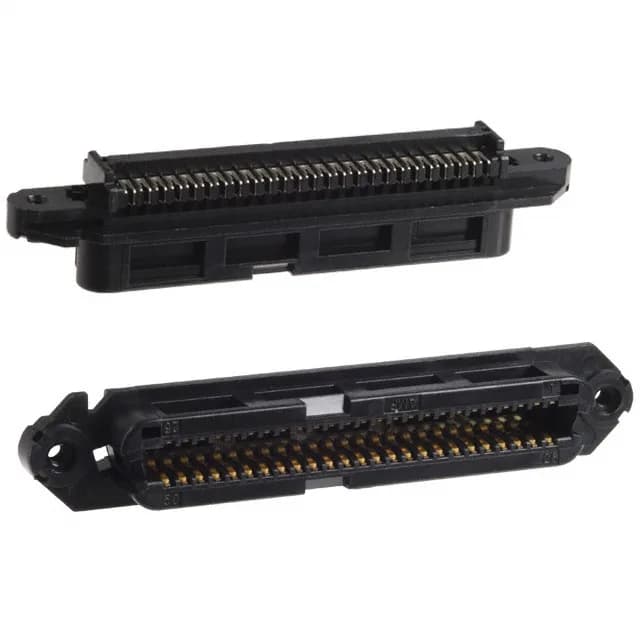

TE CHAMP .085 2-552001-1, 50 Pos IDC Receptacle

MPN2-552001-1
Active

TE Connectivity CHAMP.085 receptacle, 50 positions, 2 rows, IDC termination, free-hanging (in-line), 30.0µin (0.76µm) gold contact finish, outer shroud contacts.

$7.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesCHAMP .085
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-552001-1 specifications
ParameterValue
SeriesCHAMP .085
MountingFree Hanging (In-Line)
Connector typeOuter Shroud Contacts
PackageTray
TerminationIDC
Contact finishGold
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions50
Contact finish thickness30.0µin (0.76µm)

Product details

CHAMP .085 50-Position IDC Receptacle

The outer shroud contacts and two-row layout are typical of the CHAMP.085 family, which uses a 0.085-inch pitch between contacts. The free-hanging (in-line) mounting style and IDC termination mean this receptacle is wired by pressing the ribbon cable into the slot with a tool — no individual crimp terminals. The unthreaded flange feature allows panel-mounting with a screw or bolt through the housing shell for strain relief in a fixed installation.

Tin-plated contacts at a lower price point would wear faster under repeated mate/unmate duty; the gold here buys extended reconnect life.
