CHAMP .085 Inline Receptacle for Ribbon Cable Harnesses

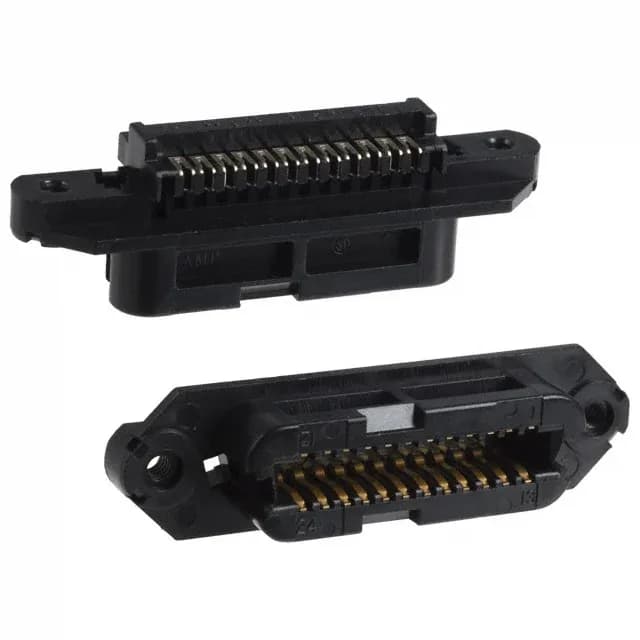

The TE Connectivity 2-552273-1 is a 24-position receptacle from the CHAMP.085 series, terminated via IDC for direct mass-termination to 0.085-inch pitch ribbon cable.
IDC Termination and Cable Assembly Fit
This receptacle uses IDC termination, meaning the ribbon cable conductors are pressed into insulation-displacement slots in the contact body — no stripping, no crimping, no soldering. The free-hanging mount means the connector lives on the cable end, not on a PCB, and mates with a board-mounted header or another inline connector. The unthreaded flange on the housing provides a locating feature for panel mounting or for use with a backshell, though the primary retention is the latch lock.
