TE AMPLIMITE HD-20 2-5747704-0, DB-25 D-Sub Plug, 25 Pos

MPN2-5747704-0
Active

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 2-5747704-0, 25 positions, 2 rows, 6 A, 125 V, through-hole solder, gold contacts, black UL94 V-0 polyester shell, board locks and grounding indents.

$8.5900Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2-5747704-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesAMPLIMITE HD-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2-5747704-0 key specifications
ParameterValue
SeriesAMPLIMITE HD-20
TypeSignal
MountingThrough Hole
Connector typePlug, Male Pins
Voltage rating125V
Current rating6A
Shell size, connector layout3 (DB, B)
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialBrass
Dielectric materialPolyester
Shell material, finishSteel, Tin Plated

All specifications

2-5747704-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
PackageTube
FeaturesBoard Lock, Grounding Indents
TerminationSolder
Contact finishGold
Flange featureHousing/Shell (4-40)
Rows2
Positions25

Product details

25-Position DB-25 D-Sub Plug with Board Locks

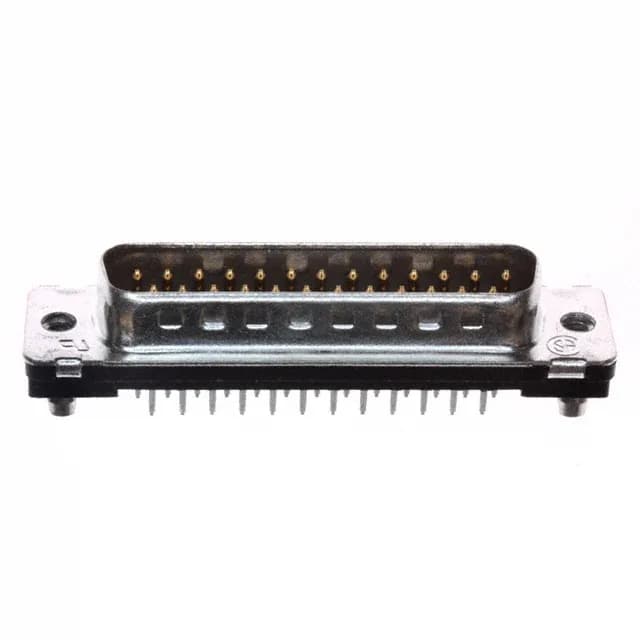

The TE Connectivity AMPLIMITE HD-20 2-5747704-0 is a 25-position, 2-row D-Sub plug with male pins, sized as a DB-25 (shell size 3, DB, B layout). It is designed for through-hole solder termination to a PCB, with a vertical (straight) orientation. Gold-plated brass contacts provide corrosion resistance for repeated mating cycles.

Board Locks and Grounding Indents for Vibration Resistance

The 2-5747704-0 includes board locks and grounding indents.

4-40 Threaded Flange for Standard Backshell Compatibility

The flange feature is a housing/shell with 4-40 threaded inserts, matching the standard D-sub locking hardware. This allows the plug to mate with any standard D-sub receptacle and accept a wide range of D-sub backshells and cable clamps that use 4-40 jackscrews.

Frequently asked questions

Where can I buy 2-5747704-0?

Submit an RFQ for current pricing and lead time confirmation.

What is the pinout of 2-5747704-0?

2-5747704-0 is a standard DB-25 D-Sub plug with 25 positions arranged in two rows. The pinout follows the standard DB-25 assignment as defined by the D-Subminiature connector standard.
