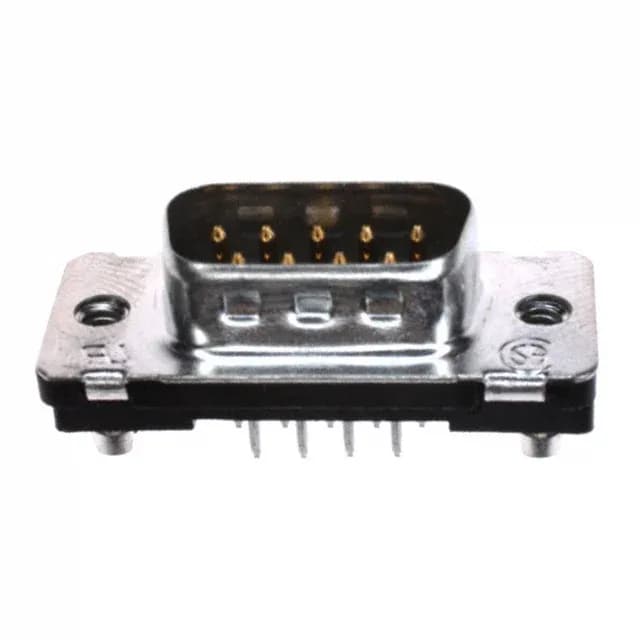

TE Connectivity AMPLIMITE HD-20 D-sub plug, 9-position, 2 rows, male pins, through-hole solder, gold contact finish, 6A, 125V, board lock and grounding indents.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Tin Plated |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (4-40) |
| Rows | 2 |
| Positions | 9 |
This is the male pin side — mates with any standard DE-9 receptacle housing.
Grounding indents in the shell mate with the receptacle face to bleed shield current before it reaches the signal pins — a detail that matters for EMI control in industrial enclosures.
Yes, this D-sub plug includes board lock features along with grounding indents in the shell.
