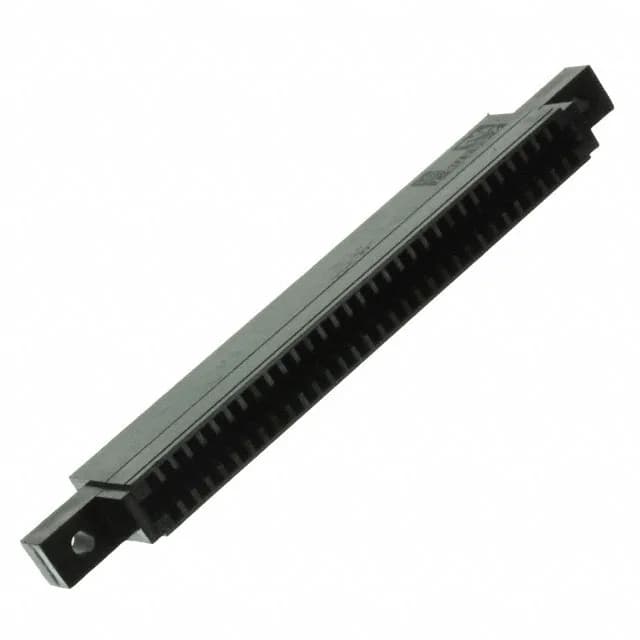

TE Connectivity TWIN LEAF series card edge housing, 2-583718-7, 64 positions, 0.100" (2.54mm) pitch, panel mount, black UL94 V-0 polyester thermoplastic, flange mount, contacts not included.
| Parameter | Value |
|---|---|
| Series | TWIN LEAF |
| Card type | Non Specified - Dual Edge |
| Mounting | Panel Mount |
| Operating temperature | -40°C ~ 85°C |
| Color | Black |
| Material - insulation | Polyester Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Note | Contacts Not Included |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Flange |
| Card thickness | 0.055\" ~ 0.070\" (1.40mm ~ 1.78mm) |
| Flange feature | Top Mount Opening, Unthreaded, 0.128\" (3.25mm) Dia |
| Positions | 64 |
The TE Connectivity 2-583718-7 is a 64-position card edge housing from the TWIN LEAF series, designed for non-specified dual edge cards with a card thickness range of 0.055" to 0.070" (1.40 mm to 1.78 mm).
The card thickness range of 0.055" to 0.070" (1.40 mm to 1.78 mm) defines the acceptable PCB edge thickness for proper contact retention and alignment.
The housing does not include contacts — they must be ordered separately.
