38-Position MICTOR Receptacle for Dense Board-to-Board Signal

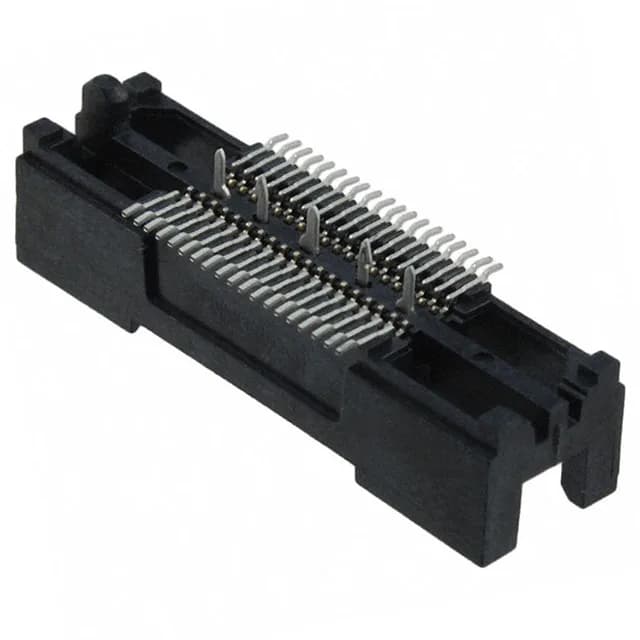

The TE Connectivity 2-767004-2 is a 38-position receptacle from the MICTOR series, designed for high-density board-to-board signal interconnect where a fine 0.025" (0.64mm) pitch packs many lines into a small board footprint. The part includes an integrated board guide for alignment during assembly and a ground bus plane that provides a low-impedance return path close to the signal contacts.
This receptacle supports a wide range of mated stacking heights depending on the mating header: 6.6mm, 9mm, 10.92mm, 12.57mm, 17.96mm, 18.75mm, 20mm, and 22.86mm. That range lets the same connector pair serve everything from tight mezzanine stacks to wider board spacings in a single BOM line. The height above board of the receptacle alone is 0.236" (6.00mm).
