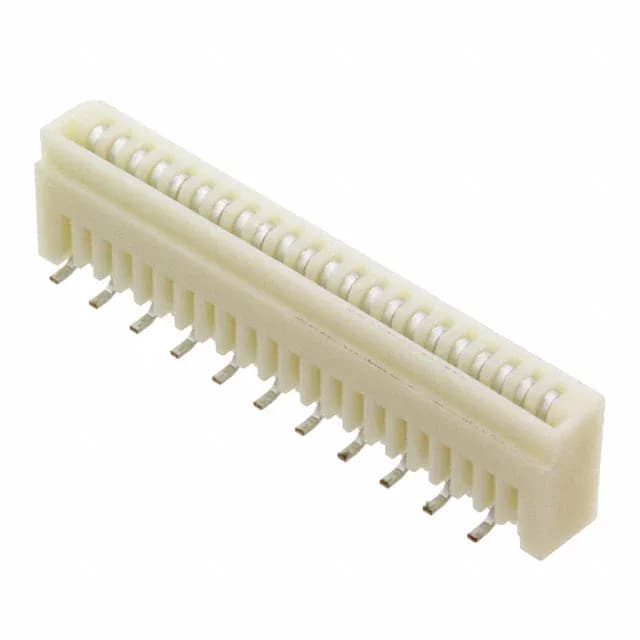

TE Connectivity AMP Connectors 2-84982-2, FFC / FPC connector, vertical SMD, 22 positions, 1.00 mm pitch, tin-plated phosphor bronze contacts, 1 A per contact, -20°C to 85°C operating range.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | Beige |
| Contact material | Phosphor Bronze |
| Housing material | Polyamide (PA), Nylon, Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 22 |
It accepts a 0.30 mm thick flat flex cable with contacts on one side only. The housing is glass-filled nylon (PA) in beige, with a 5.59 mm height above the board after reflow.
Available in Tape & Reel (TR) or Cut Tape (CT) packaging.
The base product number is 84982. TE offers other position counts and orientations in the same series — verify the exact pitch, position count, and SMT orientation before substituting. No direct drop-in replacement is listed here.
