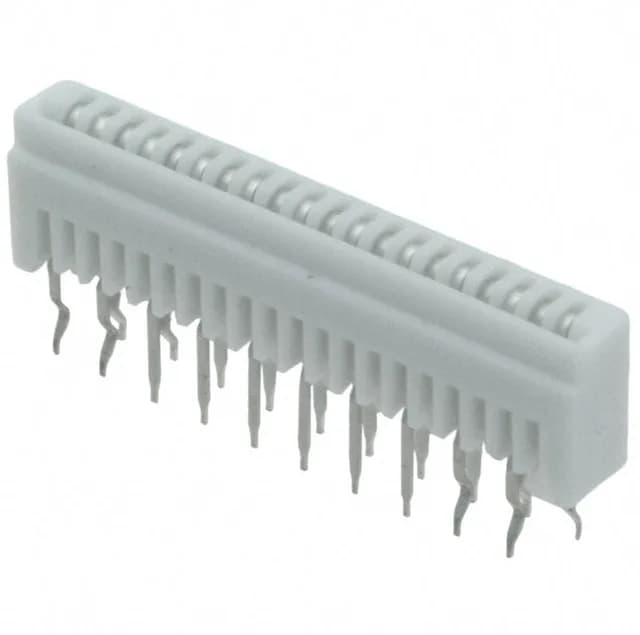

TE Connectivity AMP 2-84984-0, FFC/FPC connector, 20 positions, 1.00 mm pitch, vertical through-hole, tin-plated phosphor bronze contacts, 1 A per circuit, 125 V, -20°C to 85°C, ROHS3 compliant.
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Cable end type | Straight |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Vertical - 1 Sided |
| Voltage rating | 125V |
| Current rating | 1A |
| Operating temperature | -20°C ~ 85°C |
| Housing color | White |
| Contact material | Phosphor Bronze |
| Housing material | Polybutylene Terephthalate (PBT), Glass Filled |
| Height above board | 0.220\" (5.59mm) |
| Pitch | 0.039\" (1.00mm) |
| Package | Tube |
| Termination | Kinked Pin |
| Contact finish | Tin |
| FFC, FCB thickness | 0.30mm |
| Positions | 20 |
It accepts 0.30 mm thick flat flex cable and mates with a one-sided contact pattern on the FPC.
Through-hole mounting with kinked pins provides mechanical retention during soldering and resists pull forces from the FPC. The housing sits 5.59 mm above the board surface, a height that clears most low-profile enclosures.
The pitch is 0.039" (1.00 mm). This determines the FPC conductor spacing and the PCB footprint pad layout.
Through-hole mounting with kinked pins. The pins insert into plated through-holes and are wave-soldered.
Yes, ROHS3 compliant.
