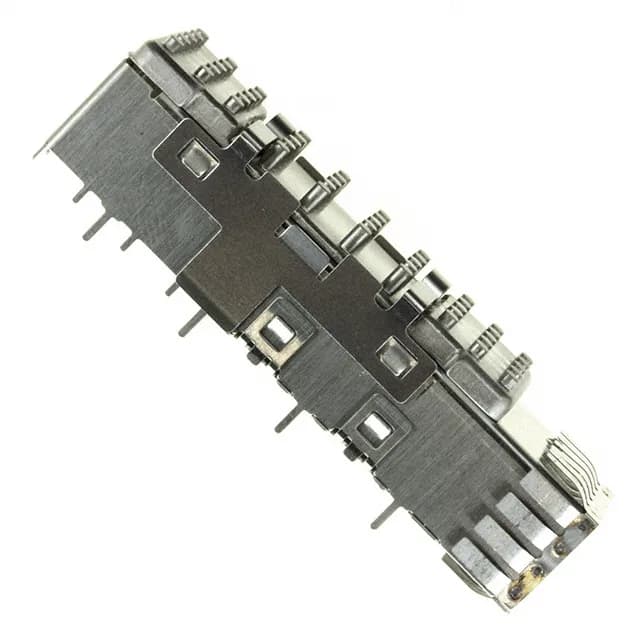

TE Connectivity SFP+ cage, 2007193-1, through-hole right-angle mount, EMI shielded, solder termination, tray package.
| Parameter | Value |
|---|---|
| Mounting | Through Hole, Right Angle |
| Connector type | SFP+ |
| Package | Tray |
| Features | EMI Shielded |
| Termination | Solder |
The TE Connectivity 2007193-1 is a press-fit SFP+ cage that accepts standard SFP+ transceiver modules. The EMI Shielded feature means the cage body is designed to contain radiated emissions from the high-speed serial link, which matters when the port density is high and the enclosure has limited space for additional gasketing.
Yes, the 2007193-1 is a standard SFP+ cage designed to accept any SFP+ transceiver module that complies with the SFF-8431 specification. The cage provides the mechanical enclosure and EMI shielding; the electrical interface is handled by the mating connector on the PCB.
The 2007193-1 is a cage, not a connector with a defined pinout. The cage houses the SFP+ module and provides the mechanical and EMI-shielding interface. The electrical pinout is defined by the SFP+ connector (typically a 20-pin edge connector) on the PCB that the module plugs into — that connector is a separate part.
