TE Connectivity AMP Connectors 2007435-1

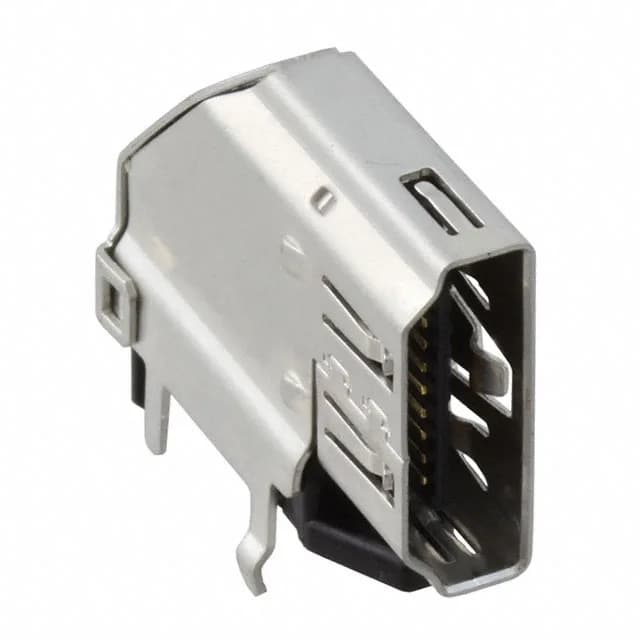

TE Connectivity 2007435-1 HDMI Receptacle, 19 Pos, 0.5A

MPN 2007435-1
Active

TE Connectivity, HDMI receptacle, 2007435-1, 19 contacts, 0.5A per contact, 40VAC, right-angle through-hole, shielded, board lock, tray

$6.5200 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2007435-1 specifications
ParameterValue
MountingPanel Mount, Through Hole, Right Angle
Connector typeHDMI
Voltage - rated40VAC
Current rating0.5A
Positions19
Mounting featureVertical
Operating temperature-20°C ~ 85°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
GenderReceptacle
PackageTray
FeaturesBoard Lock
ShieldingShielded
TerminationSolder
Contact finishGold
Number of ports1

Product details

Standard HDMI Type A Receptacle for PCB Mount

The TE Connectivity 2007435-1 is a 19-contact HDMI receptacle, the standard Type A interface used for uncompressed video and audio transmission in consumer electronics, monitors, projectors, and embedded systems. It carries the full 19-pin HDMI signal set — TMDS data lanes, clock, DDC, CEC, and hot-plug detect — in a single shielded connector body. Rated at 0.5A per contact and 40VAC, the 2007435-1 is a signal-level interface; the current per pin is sized for the differential pairs and control lines of the HDMI protocol, not for power delivery. The connector is shielded with a steel and stainless steel shell, which provides the EMI containment needed for high-speed digital video signals up to the HDMI 1.4 bandwidth. The shell also serves as the ground return path for the cable shield, a critical detail for signal integrity in longer cable runs.

Mounting and Board Retention

The mounting feature is vertical relative to the panel, meaning the connector body sits upright when the board is horizontal. For a connector that sees frequent mating cycles in consumer use, the board lock prevents the through-hole solder joints from cracking under the lever arm of a stiff HDMI cable.

It is not rated for automotive underhood or extended outdoor exposure without additional enclosure protection.

The TE Connectivity 2007435-1 is an active, in-production HDMI receptacle.
