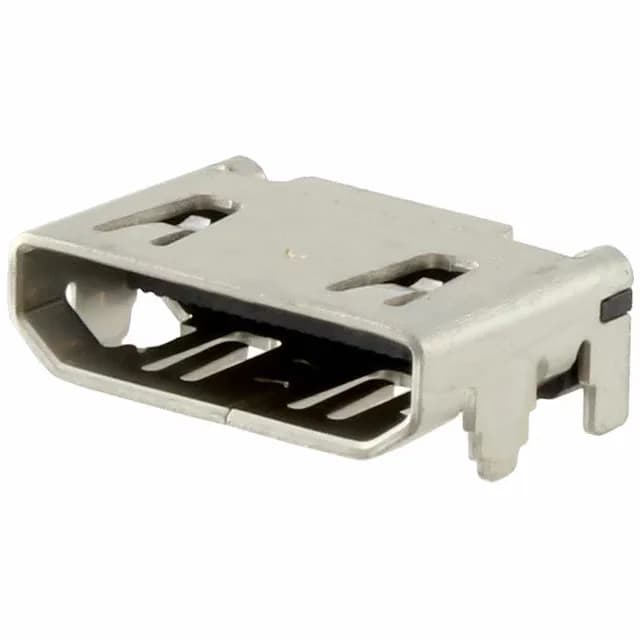

Mini HDMI Receptacle for High-Cycle Portable AV Gear
The TE Connectivity 2013978-2 is a 19-contact Mini HDMI receptacle in a surface-mount, right-angle package. It is the smaller-form-factor alternative to standard HDMI Type A, designed for portable devices like cameras, tablets, and single-board computers where board space is tight. The 5000 mating cycle rating is the headline spec here — ten times the typical HDMI connector — which tells you this part was built for frequent plug/unplug duty in field-service or test applications, not a one-and-done panel install.
5000 Mating Cycles — Built for Frequent Reconnect
Standard HDMI receptacles are typically rated for 500 to 1000 cycles. The 2013978-2 carries a 5000-cycle rating, which means the gold-plated contacts and the shell retention are specced for daily plugging over years of use. The gold contact finish supports that cycle life without fretting corrosion.
SMT Right-Angle — Board Edge, Pick-and-Place Ready
The SMT termination feeds through a reflow oven on a Tape & Reel carrier. The 19 contacts are on the Mini HDMI pitch.
No direct cross-reference or equivalent is listed from TE, so the BOM line should stay with this order code.
