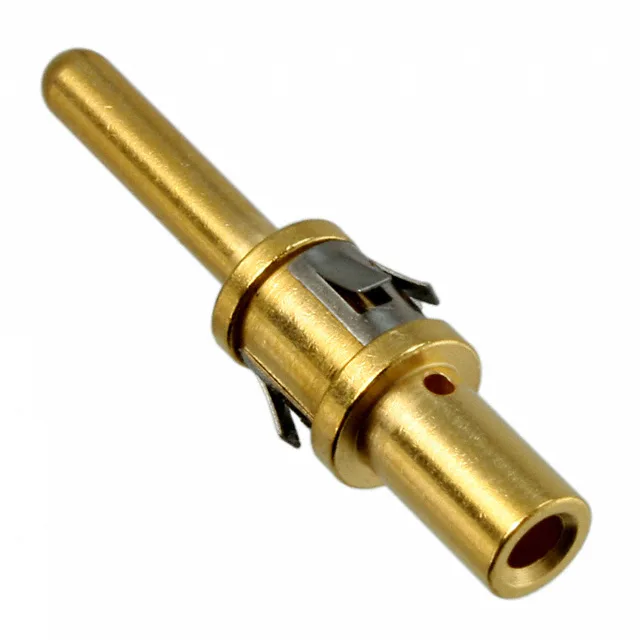

202422-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 202422-1 Multimate I Power Contact, 12-14 AWG, Gold

MPN202422-1
Active

TE Connectivity Multimate I power contact, pin, 12-14 AWG, gold 30.0µin, crimp termination, bulk.

$10.7700Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

202422-1 Technical Specifications
ParameterValue
TypePower
SeriesMultimate I
Wire gauge12-14 AWG
Contact materialBrass
PackageBulk
Pin or socketPin
Contact finishGold
Contact terminationCrimp
Contact finish thickness30.0µin (0.76µm)

Product details

Power contact for the Multimate I system

The TE Connectivity 202422-1 is a pin contact in the Multimate I series, sized for 12-14 AWG wire. The crimp termination keeps assembly consistent across the harness, and the wire range means this contact handles the heavier-gauge power feeds typical of industrial and commercial equipment.

This contact accepts 12-14 AWG stranded wire through a crimp barrel. That gauge range covers the common power-distribution sizes in panel wiring and harness builds — thick enough for several amps of continuous current without excessive voltage drop, but still flexible enough for routing inside an enclosure.

Frequently asked questions

Where can I buy the 202422-1 contact?

The 202422-1 is sourced to order through independent distribution against an RFQ. Availability and current pricing are confirmed at quote time — no stock-holding claim is made here.

What wire gauge does the 202422-1 accept?

The 202422-1 accepts 12-14 AWG stranded wire. That range covers the common power-distribution sizes for panel and harness wiring.

What housing does the 202422-1 contact fit?

The 202422-1 is a Multimate I series pin contact. It mates with the matching Multimate I receptacle housing — the same series uses a specific cavity geometry that does not interchange with other TE connector families.
