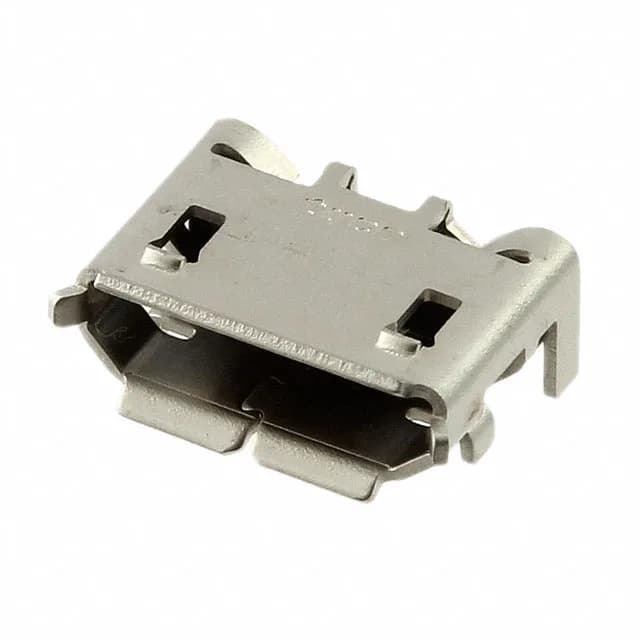

TE Connectivity 2040002-1 USB 2.0 micro-B receptacle, 5 contacts, SMT right-angle, gold-plated contacts, 30V, 0.5A/1A/1.8A, 10,000 mating cycles, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle; Through Hole |
| Connector type | USB - micro B |
| Voltage - rated | 30V |
| Current rating | 0.5A, 1A, 1.8A |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -30°C ~ 85°C |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The gold-plated contacts and steel/stainless shell provide corrosion resistance and EMI shielding for the USB 2.0 signal pair plus power and ground.
The 30 V rating and the multi-value current listing (0.5 A, 1 A, 1.8 A) are standard for USB 2.0 power delivery.
The TE 2040002-1 is a micro-B receptacle, which has a trapezoidal shape with the wider side at the top. Micro-A connectors are rectangular and less common. The two are mechanically incompatible — a micro-B plug will not fit a micro-A receptacle, and vice versa.
