TE Connectivity AMP Connectors 2041119-2 — Card-Edge Connectors

2041119-2 TE Connectivity PCI Express Mini Card Edge

MPN2041119-2
Active

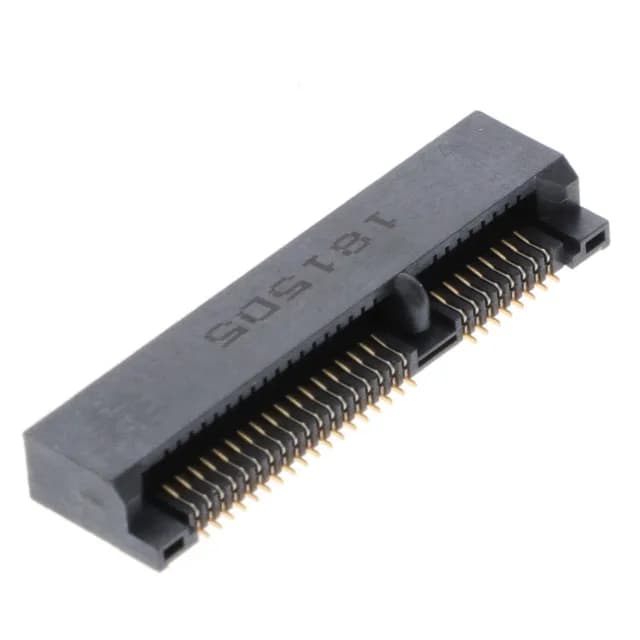

TE Connectivity AMP Connectors 2041119-2, PCI Express Mini Card female edge connector, 52 positions, 0.031" (0.80mm) pitch, dual read-out, surface mount right angle, gold-plated phosphor bronze contacts, black thermoplastic insulation.

$0.9700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

2041119-2 specifications
ParameterValue
Card typePCI Express Mini Card
MountingSurface Mount, Right Angle
Operating temperature-55°C ~ 85°C
ColorBlack
Contact materialPhosphor Bronze
Material - insulationThermoplastic
Pitch0.031\" (0.80mm)
GenderFemale
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesBoard Guide
Read outDual
TerminationSolder
Card thickness0.039\" (1.00mm)
Contact finishGold
Rows2
Positions52
Contact finish thickness10.0µin (0.25µm)
Number of positions (Bay, row)8; 18

Product details

PCI Express Mini Card edge connector — 0.80mm pitch, 52 positions

The 2041119-2 is a female card-edge connector designed for PCI Express Mini Card modules, with a 0.031" (0.80mm) pitch and 52 positions arranged in dual rows.

Position layout and card compatibility

The 52 positions are split across two bays per row: 8 positions in one bay and 18 in the other, matching the PCI Express Mini Card edge finger assignment. Card thickness is specified at 0.039" (1.00mm), the standard for Mini Card modules. A built-in board guide aids alignment during insertion, reducing the risk of contact stubbing.

It is ROHS3 compliant.

Frequently asked questions

Is 2041119-2 compatible with standard PCIe Mini Card?

Yes, the 2041119-2 is designed for PCI Express Mini Card modules, with 52 positions, 0.80mm pitch, dual-row layout, and a 1.00mm card thickness specification.
