TE Connectivity AMP Connectors 205206-8 — D-Sub & D-Shaped Connectors

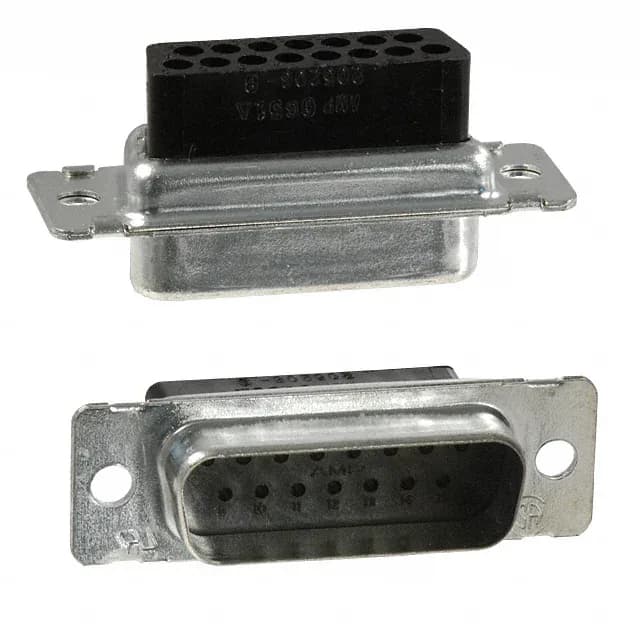

TE 205206-8 AMPLIMITE HDP-20 D-Sub Plug Housing, 15 Pos

MPN205206-8
Active

TE Connectivity AMPLIMITE HDP-20 205206-8, D-sub plug housing for male contacts, 15 positions, 2 rows, DA-15 shell size, free-hanging, black nylon, steel shell tin plated, bulk.

$2.7000Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesAMPLIMITE HDP-20
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

205206-8 specifications
ParameterValue
SeriesAMPLIMITE HDP-20
TypeSignal
MountingFree Hanging (In-Line)
Connector typePlug for Male Contacts
Shell size, connector layout2 (DA, A)
ColorBlack
Dielectric materialPolyamide (PA), Nylon, Glass Filled
Shell material, finishSteel, Tin Plated
NoteContacts Not Included
PackageBulk
Flange featureHousing/Shell (Unthreaded)
Rows2
Positions15

Product details

Plug Housing for a Standard DA-15 Pin Layout

The TE Connectivity AMPLIMITE HDP-20 205206-8 is a 15-position D-sub plug housing designed to accept male crimp contacts. It uses the standard DA-15 shell layout (2 rows, shell size 2) and mounts free-hanging (in-line) — no PCB footprint needed. The housing is black glass-filled nylon (PA), with a steel shell that is tin-plated for EMI shielding. This is the male plug half; it mates with a standard 15-position D-sub receptacle housing (such as the TE 205207-8).

Frequently asked questions

Where can I buy 205206-8 available via RFQ confirmation?

The 205206-8 is an active TE Connectivity part sourced through independent distribution.

Does TE Connectivity 205206-8 come with contacts?

No. The spec explicitly notes 'Contacts Not Included'. You must order the male crimp contacts separately (e.g., TE 205089-1 or any AMPLIMITE HDP-20 pin contact).

What is the pin layout for 205206-8 housing?

It uses the standard DA-15 (shell size 2) layout: 15 positions arranged in two rows — 8 in the top row, 7 in the bottom. This is the same pinout as any standard 15-position D-sub connector.

Is 205206-8 compatible with standard D-sub shell sizes?

Yes. The shell size is 2 (DA, A), which is the standard for 15-position D-sub connectors. It will mate with any standard DA-15 receptacle housing and fit standard D-sub backshells and hoods.
