TE Connectivity AMP Connectors 2058703-2 — LED Lighting Connectors

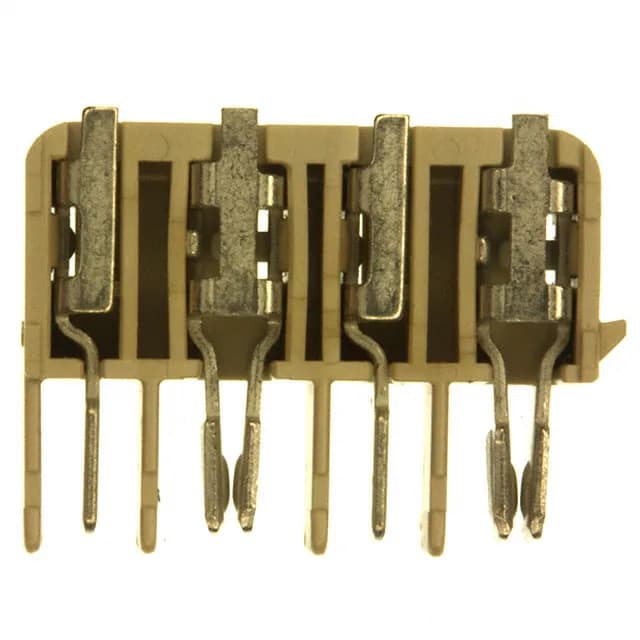

TE Connectivity 2058703-2, 4-Pos Hermaphroditic Connector

MPN2058703-2
Active

TE Connectivity, Hermaphroditic Blade and Receptacle, 2058703-2, 4 Positions, 0.157" (4.00mm) Pitch, 6A, 125V, Board Edge/Surface Mount/Right Angle, Solder, Tin Contact Finish, Locking Ramp.

$1.0593Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 2058703-2 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

2058703-2 specifications
ParameterValue
MountingBoard Edge, Surface Mount, Right Angle
Connector typeBlade and Receptacle, Hermaphroditic
Fastening typeLocking Ramp
Voltage rating125V
Current rating6A
Operating temperature-40°C ~ 105°C
Housing colorNatural
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP)
Pitch0.157\" (4.00mm)
StyleBoard to Board
PackageTape & Reel (TR) Cut Tape (CT)
TerminationSolder
Contact finishTin
Positions4

Product details

Board-Edge Hermaphroditic Connector for Compact Power Distribution

The 2058703-2: Its hermaphroditic design means both mating halves are identical — you don't need separate plug and receptacle inventory, and there's no risk of mismatching halves on the line. The housing is molded from Liquid Crystal Polymer (LCP) in a natural color, with tin-plated copper alloy contacts. The connector is surface-mount, right-angle, and mounts at the board edge — a combination that saves Z-height in enclosures where the PCB sits close to the wall.

Frequently asked questions

Where can I buy 2058703-2 and what is the price?

Submit an RFQ for your BOM quantity and target delivery window.

What is the closest functional second-source for 2058703-2?

The 1-2213614-1 is the closest functional peer, sharing the same 0.157" (4.00mm) pitch, 4 positions, hermaphroditic design, and 6A rating. The key difference is contact finish: 2058703-2 uses tin, while 1-2213614-1 uses gold.

What is the mating connector for 2058703-2?

Because the 2058703-2 is a hermaphroditic connector, the mating half is another 2058703-2 — both sides are identical. No separate plug or receptacle is needed.

Is 2058703-2 polarized or keyed?

The connector uses a locking ramp for retention, but the hermaphroditic design inherently prevents mis-mating since both halves are the same. The 0.157" (4.00mm) pitch and blade-and-receptacle geometry provide mechanical polarization.
