CPC Backshell with Cable Clamp, Size 11
The TE Connectivity 206358-5 is a backshell with integrated cable clamp for the CPC (Circular Plastic Connector) series, shell size 11. It provides strain relief and cable management at the rear of a mated CPC connector pair, routing the cable at a 180° exit angle.
Thread and Cable Opening
The 5/8-24 UNEF thread size mates with the corresponding thread on a CPC connector back end or panel-mount receptacle — this is the mechanical interface that holds the backshell onto the connector. The cable opening measures 0.453" (11.51 mm) in diameter, which sets the maximum cable bundle that can pass through the clamp. For a given harness, the outer jacket diameter must fit within that opening for the clamp to close properly.
What's in the Bag

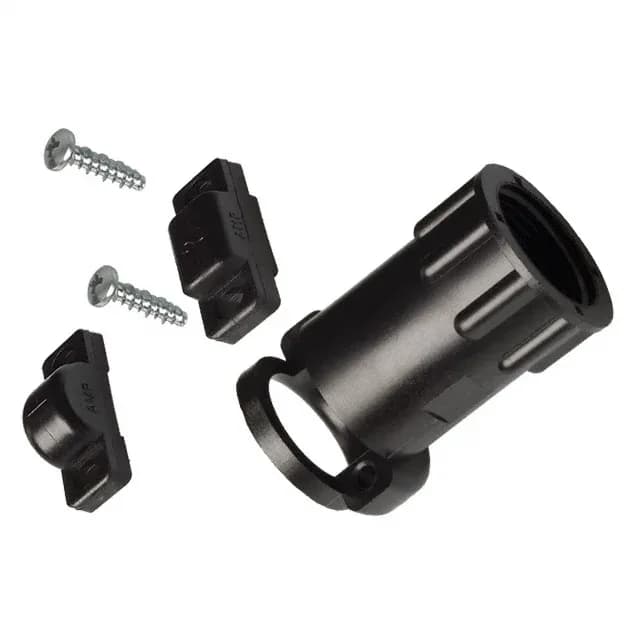

The package includes five pieces: three cable clamp pieces and two screws. The clamp screws secure the clamp halves around the cable after it is routed through the backshell. The bag packaging is standard for this accessory — no bulk reel or tube.
