TE Connectivity AMP Connectors 2069250-1 — Pluggable Assemblies

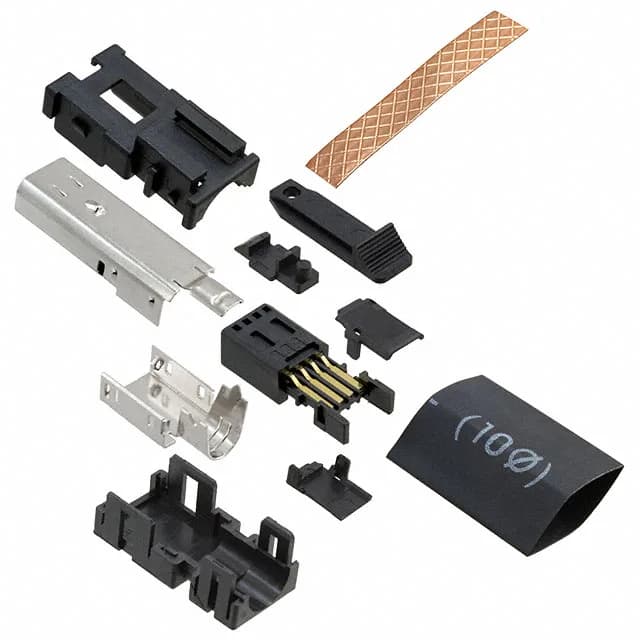

TE 2069250-1 Industrial Mini Type I Plug, 8 Pos, Gold, Crimp

MPN2069250-1
Active

TE Connectivity Industrial Mini Type I plug, 8 positions, crimp termination, free hanging (in-line), gold contact finish 19.7µin, latch lock feature, tray package.

$15.3800Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

2069250-1 specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeIndustrial Mini, Type I
PackageTray
FeaturesLatch Lock
TerminationCrimp
Contact finishGold
Positions8
Contact finish thickness19.7µin (0.50µm)

Product details

The TE 2069250-1 is an 8-position Industrial Mini, Type I plug — a free-hanging (in-line) connector designed for wire-to-wire or wire-to-panel harnesses in factory automation, sensor networks, and control cabinets. It uses crimp termination, so you terminate the contacts onto the wire ends before inserting them into the housing, which makes field repair and custom cable lengths straightforward.

The contacts are gold-plated at 19.7 µin (0.50 µm) — that is a substantial layer, well above a flash coating. For a harness that gets disconnected during maintenance or reconfiguration, this plating grade is what keeps the contact resistance stable over the life of the installation.

Frequently asked questions

What is the mating connector for 2069250-1?

The 2069250-1 is an Industrial Mini Type I plug; it mates with the matching Type I receptacle (typically a panel-mount or in-line jack from the same series).
