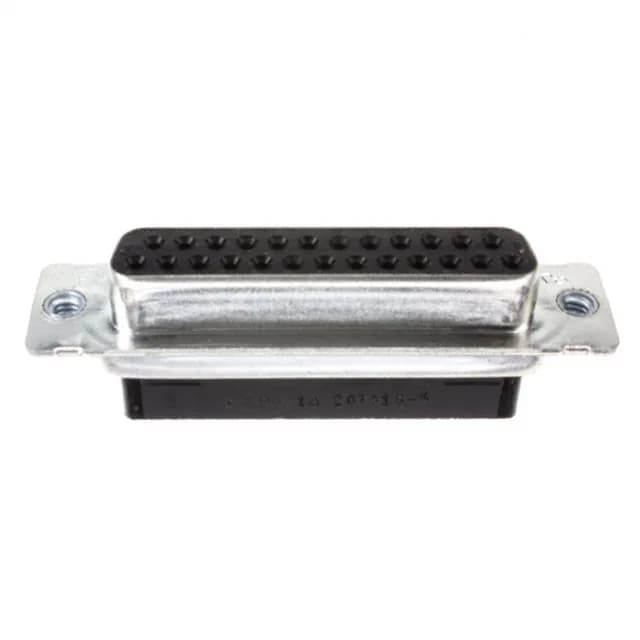

25-Position D-Sub Receptacle Housing for AMPLIMITE HDP-20
It uses the standard DB-25 shell layout (shell size 3, DB, B), making it the receptacle half for any standard DB-25 male plug housing. The housing is free-hanging (in-line) with a cable-side 4-40 threaded flange for secure mating with a male connector's screw-lock hardware. The shell is steel with a 200µin (5.08µm) tin plating. The dielectric insert is glass-filled nylon (PA) in black. You must order the matching AMPLIMITE HDP-20 female crimp contacts (such as the 66506 series) separately. The housing accepts signal-gauge contacts, typically 20-24 AWG depending on the specific contact part number chosen.
The mating connector for the 207516-5 is a standard DB-25 male plug housing from the AMPLIMITE HDP-20 series — for example, the 207515-1 (25-position male housing). The 4-40 threaded flange on this receptacle accepts the screw-lock hardware from the male plug, providing vibration-resistant retention. For contacts, use AMPLIMITE HDP-20 female crimp contacts. The standard signal contact is the 66506-3 (20-24 AWG, tin plating) or 66506-9 (20-24 AWG, gold plating for higher mating cycle life). The housing accepts one contact per cavity, with a standard insertion tool (e.g., TE 91067-1) and a removal tool (e.g., TE 91067-2) for service.
