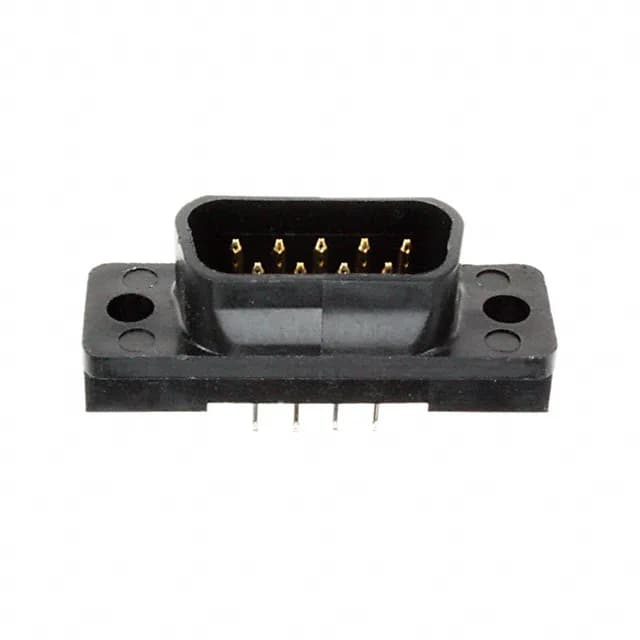

TE Connectivity AMPLIMITE HD-20 D-Sub plug, 9 positions, 2 rows, vertical through-hole solder, rated 6A at 125V, gold flash contacts, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | AMPLIMITE HD-20 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | Plug, Male Pins |
| Voltage rating | 125V |
| Current rating | 6A |
| Shell size, connector layout | 1 (DE, E) |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Brass |
| Dielectric material | Polyester |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Package | Tube |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 2 |
| Positions | 9 |
| Contact finish thickness | Flash |
Rated 6A per contact at 125V, it carries signal-level current on brass contacts with gold flash plating. The shell size is 1 (DE, E), which mates with the standard DE-9 receptacle housing.
Termination is vertical solder tails for through-hole PCB mounting; the unthreaded housing/shell flange means it uses a 4-40 threaded insert on the receptacle side for jack-screw retention, not a locking mechanism on the plug itself.
No, the 208006-1 is RoHS non-compliant. The solder termination contains lead, so it is not suitable for assemblies requiring EU RoHS compliance.
