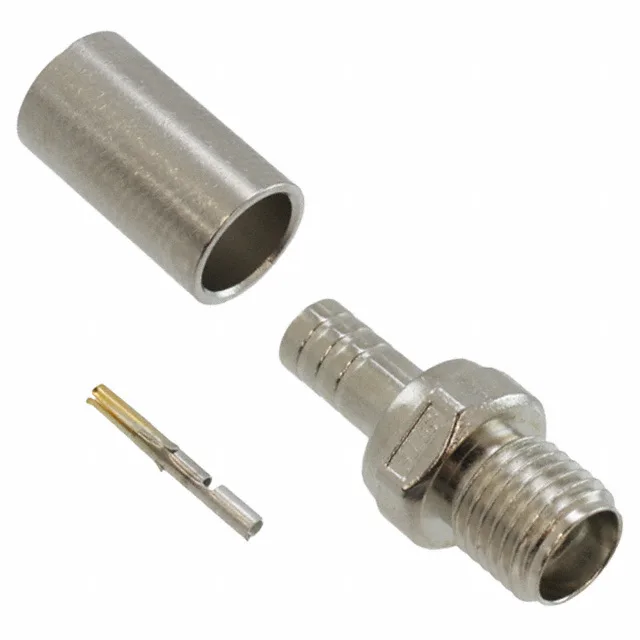

2081205-7 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 2081205-7 SMA Jack, 50 Ohm, 18 GHz, Obsolete

MPN2081205-7
Obsolete

TE Connectivity KOAXXA series SMA jack, female socket, 50 Ohm, 18 GHz max frequency, 335 V rating, threaded coupling, crimp shield termination, solder contact termination, gold-plated center contact, nickel body, for RG-58/141/142/223/400 cable groups.

$4.7800Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

2081205-7 Technical Specifications
ParameterValue
SeriesKOAXXA
Mounting typeFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating335 V
Frequency - max18 GHz
Cable groupRG-58, 141, 142, 223, 400
Operating temperature-65°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialCopper Alloy
PackageBulk
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance50Ohm
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

RF Connector for RG-58 and Similar Cables — 50 Ohm, 18 GHz

The 2081205-7: The dielectric is polymethylpentene (PMP). This connector accepts cable groups RG-58, 141, 142, 223, and 400 — a common set for thin coax and semi-rigid lines in test equipment, antenna feeds, and short-run RF interconnects. The shield is terminated by crimp, the center contact by solder.

Lifecycle — Obsolete, Sourced to Order

The 2081205-7 is listed as Obsolete. If a direct replacement is needed, review the TE Connectivity SMA product family for a current-production jack with the same cable-group and impedance profile.

Mating Cycles and Field Service

The gold-on-copper-alloy center contact handles repeated reconnects without significant wear.

Frequently asked questions

Is 2081205-7 obsolete?

Yes, the TE Connectivity 2081205-7 is listed as Obsolete. No official replacement part number is provided. For a current-production alternative, review the TE SMA connector family for a jack with matching cable-group and impedance.

What cable groups are compatible with 2081205-7?

The 2081205-7 is compatible with RG-58, 141, 142, 223, and 400 cable groups. The shield is crimp-terminated, the center contact soldered.
